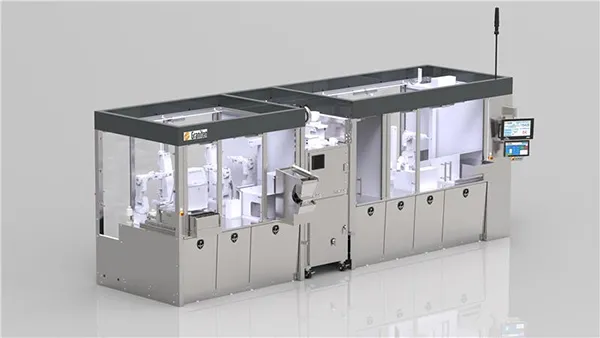

PRIMARY PACKAGING LINE BOTTLE

ABOUT
Fully automated and free from format parts, Graniten Flexline Primary packaging line bottles clinical trials, enables minimal time between batches in favor of more responsive pharmaceutical research and development. Compared with standard equipment that runs at higher speed yet requires lengthy stops between batches, Graniten Flexline ensures maximum production efficiency in clinical trials.

The consequences on time and output are gasping in production of high value products, but striking at whatever product worth.

MAIN PROCESSES:

• Bottle unscrambling
• Bottle blowing
• Desiccant dispensing
• Tablet inspection, counting, and filling
• Manual filling station
• Capping
• Induction sealing
• Retorquing
• Check weighing
• Outfeed, reject, and sample point

MAIN FEATURES:

• Close to zero changeover time
• Tailormade and modular set-up
• Scalable and upgradable as requirements change
• Minimal footprint
• Low environmental impact
• Good manufacturing practise compliant design

TECHNICAL DATA

FORMAT FLEXIBILITY:

• Bottle – round (ØxH): min 31×60 mm, max 77×123 mm
• Bottle – rectangular (LxHxW): min 31x31x60 mm, max 77x62x123 mm
• Cap: sizes provided on request
• Tablet – oblong (ØxW): min 9×4 mm, max 22×11 mm
• Tablet – round (Ø): min 6 mm, max 9 mm
• Tablet – other(Ø): min 6 mm, max 9 mm
• Capsule – oblong (ØxW): min 18×7, max 22×8 mm

Capacity: 15 parts per minute

Technical changeover time: < 3 minutes

MACHINE DIMENSION RANGE

Length 6,4 m

Width 1,8 m

Height 2,4 m
