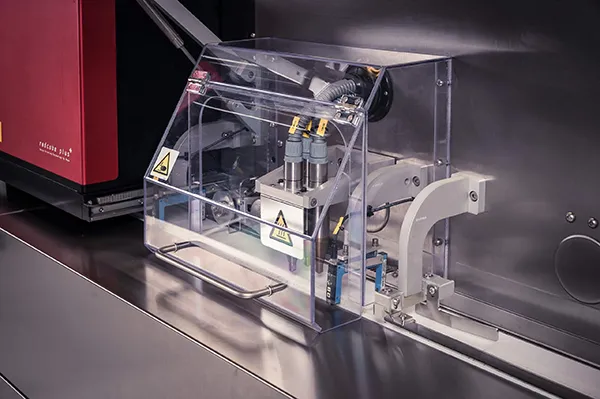

DIGITAL PAD PRINTER

ABOUT

Graniten’s Digital Pad Printer enables our customers to increase their capability of late stage customization, decrease their inventory level and increase their savings on consumables all in a smaller footprint.

The machine is based upon a linear servo drive system which enables each incoming product to be handled individually regardless of the characteristics of the incoming product flow.

Defective products identified by vision inspection are rejected into a bin. The machine comes with a unique, short conversion time between different batches, close to zero change over time – C2Z (~2 min).
MAIN FEATURES

• Compact and open
• Hygienic GMP design for pharmaceutical production
• Reject function after vision inspection
• User-friendly HMI
• Plasma treatment
• UV hardener
• Left or right infeed
• Add the flexibility of digital technology to your packaging line
• The solution for a highly agile and lean production
• Repeatability of color and contrast on the product (no solvents)
• Serialization and code printing
• No inventory of pads, labels or tooling
• Modular design with a simple upgrade path
• Reduce costs and waste
• Late stage customization of finished products

OPTIONS

• Laser etching on the flag (BFS products)
• Full colour print
• Outgoing flow can be arranged in an even manner and synchronized with downstream equipment due to a built-in buffer system. This makes the machine the ideal solution for feeding flow wrapping machines etc.

TECHNICAL DATA

PRODUCT FLOW CAPACITY

Input speed: 0-220 ppm uneven flow
Output speed: 0-220 ppm even flow
Max product speed: 60 m/min

MACHINE DIMENSION RANGE

Length: 2,0 m
Width: 1,2 m
Height: 1,9 m

MEDIA REQUIREMENT

Electrical – 400V, 16A
Air supply 6 bar
