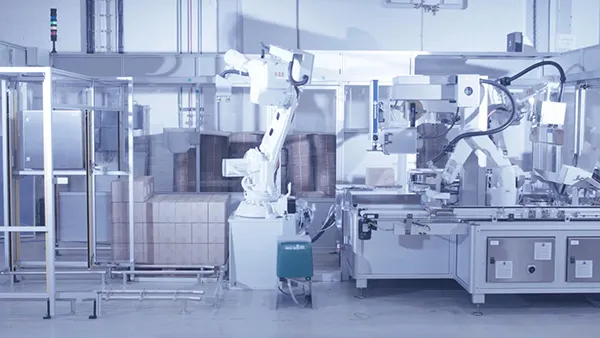

TS810 CASE PACKER

ABOUT

Designed for pharmaceutical production. With great flexibility the Graniten case packer/palletizer packs your products in tape sealed shipping boxes and palletizes the boxes, all on a small footprint.

In spite of the small footprint the machine offers an open solution with few moving parts and two pallet places. Shipping box labelling and label control is standard. Reject and IPC functions are also standard. The machine features our unique short conversion time between different batches, close to zero change over time – C2Z (Less than 5 min).

MAIN FEATURES

• Compact and open
• Very flexible regarding incoming products and packaging patterns
• Two pallet places
• Maximum pallet format is 1200×1000 mm
• Simple and quick format change – C2Z
• (No format change in card-board magazine)
• Ergonomic and safe cardboard magazine
• Reject, IPC
• Prepared for aggregation system

OPTIONS

• Labelling and label control
• Application of extra shipper box label
• Shipper box ink jet marking
• Glued boxes
• Integration of aggregation system
• Re-introduction of shipper boxes

TECHNICAL DATA

CAPACITY SHIPPING BOXES

Up to 8 ppm

Up to 12 kg

HANDLED SHIPPER BOX SIZES

Minimum 270x175x215 mm

Maximum 390x380x280 mm

MACHINE DIMENSION RANGE

Length 6,2 m

Width 3,7 m

Height 2,4 m

MEDIA REQUIREMENT

Electrical – 400V, 25A

Air Supply – 6 Bar, 20 liter free air/cycle
