Quattro IMQ250IMQ350 Series

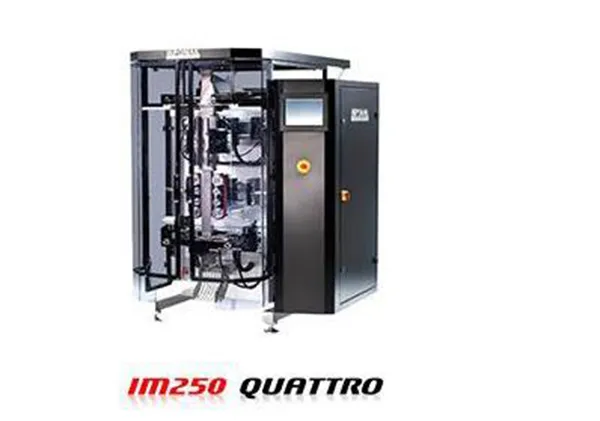

Quattro IMQ250/IMQ350 Series

Quattro Series areintermittent motion vertical form fill and seal machines for traditional and fragile products. This technology used to produces bags with a squire base and four sides sealed that characterized by being rigid, beautiful, without any creases, always in shape, perfect eye-catching, and it is the ideal bag for products that need to increase their value and require marketing tactics. The advantage of this series is, at any time if it is required, other style of bags could be done without removing the four side sealing unit.

Main Features

• Intermitted motion system
• Parts in contact with product in AISI 304 stainless steel
• Various Types of Bags, Quad sealed, pillow, gusset, block bottom, string bags etc.
• Main machine movements (horizontal sealing group and film driving group) are driven by means of independent brushless Servo motors.
• Motion-controller system is only one controller capable of coordinating all the servo motors, all the inputs-outputs, all the control functions of the line, replacing the PLC.
• 10” LCD Color Touch Screen Panel Man-machine interface. Extremely simple and easy to manage all machine parameters.
• P.I.D Heating System provides precision and stable horizontal and vertical heat sealing.
• Film Cut-off is controlled by photo eye on registered film or by incremental encoder on neutral films.
• Self-Centering Drive Belt controlled by adjustable pneumatic pressure feeds the Film precisely.
• Auto-Film Centering System adjusts independent roll support to center the film on the tube collar automatically.
• Out-of-filmSignal with automatic stop of the machine and quick connection between the finished roll and the new roll.
• Auto Film-Unwinding Unit controlled by expansion type reel-holder shaft with independent motor
• Film Tension Sensor indicates sufficient film tension.
• Movable Roller Arm provides continuous smooth tension for continuous bag forming and registration.
• Safety is obtained by Automatic stop of the machine in case of incorrect closure of the safety doors or operation malfunction, with message on the display Screen.
• Different Filling Systems Adaptable for Multi-head Weigher, Linear Weigher, Volumetric Dosing, Auger Filler, Piston filler etc.
• Wrapping materials; Polypropylene, laminates and coupled materials in general, barrier film, water-soluble film, film of biological origin, and other heat sealing materials such as polyethylene.
• Suitable for CE standarts

OPTIONAL FITTINGS/EQUIPMENTS

• Adaptable for different sealing systems such as; impulse sealing, carrier handle bag, easy-open bag, euro-slot bag, round hole bag, string bags, straight cut, tear notch cut, and zig-zag cut.
• Vacuuming Supported Belts (extend belt life time and exceed speed of the machine up 15%)
• Gas Flushing System.
• Air conditioning on the control cabinet.
• 12” industrial PC Man-machine interface.
• Static Eliminator.
• Printer.
