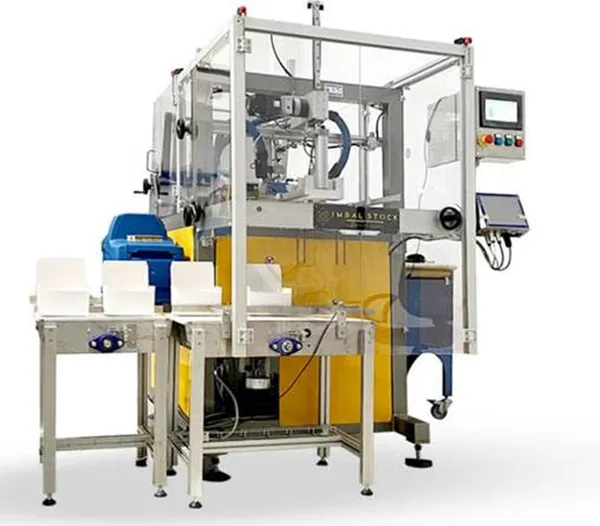

FORMING BOX MACHINE

AUTOMATIC CARTON FORMING MACHINES FORM BOXES AND TRAYS

Series IMBAL F750
The box forming machine has been designed to ensure higher productivity and to reduce costs, a machine with greater performance from every point of view.

It is suitable to forming cardboard trays and boxes starting from flat blank with glue or interlocking closure.

TECHNICAL SHEET

EXTRA

• Electrical system: managed by Mitsubishi PLC
• Operator terminal: for data storage and parameter variation
• Speed ​​variation: by inverter
• IE execution and accident prevention protections: according to CE standards
• Installed power: 6 ÷ 8 Kw (glue) ~ 3 Kw (interlocking)
• Die-cut dimensions H min/max 130/750 mm L min/max 150/750 mm
• Former male minimum size (BXC) 60x60 mm
• Die-cut warehouse:
• Adjustments by handwheel with position indicator
• Automatic compaction system
• Die-cut destacker:
• Gripping arm with suction cups
• "Venturi" suction system with filter

FORMING GROUP

• Quick format change
• Flexible coupling on the forming head with alarm and automatic release
• Adjustable sprayers by handwheel with position indicators
• Die-cut weight from 150g to 600g
• Production speed up to 3500 pcs / hour
• Air connection 6 bar
• Torque controlled electric axis conformator male motorization
• Feed-speed motorization with inverter and encoder
• Die-cut magazine with integrated transport sheet and intermittent feed
• Glue applicator with guns and heated pipes
• Compensated suction cup picking system
• Manual warehouse adjustments
• Manual glue gun adjustments
• Female format change system with quick release

OPTIONAL

• Adjustable female conformer system
• Automatic female adjustment system
• Automatic warehouse adjustment system
• Automatic glue sprayers (guns) adjustment system
• Box evacuation belt

ADVANTAGES

• Small size
• Structure in painted steel and "anticorodal" aluminum
• Fully mechanical operation
• Maintenance reduced to a minimum
• Easy accessibility
