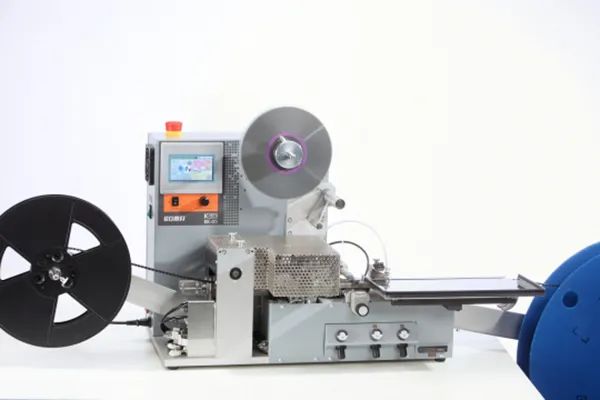

Taping Machine BK-05

Taping Machine BK-05

Manual taping machine for packing of components into carrier tapes

• Tape width adjustable from 8 mm to 56 mm or 8 mm to 120 mm
• No change-over kits necessary!
• Tape width adjustment with indicator, accuracy 0.1 mm
• Swinging sealing shoes, temperature and pressure adjustable for each side
• Changeover within a few minutes without tools by trained operator
• Micrometer screws for position adjustment of the sealing shoes and cover tape
• Programmable counter, programmable trailer and leader
• Operation via touch panel
• Sensor for counting and empty pocket recognition
• Option: camera for marking and orientation
• Heat seal and pressure seal possible
• Working speed adjustable
• Interface for communication with Pick & Place
