KETE GROUP LIMITED

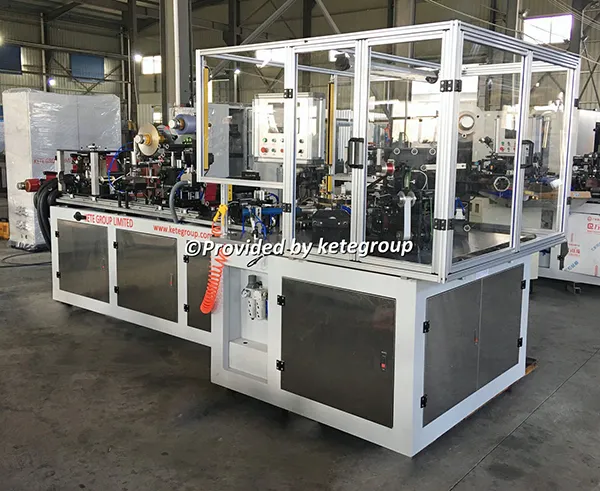

Full Automatic Wine Capsule Machine C Series

Full Automatic Wine Capsules Machine C Series is the best auxiliary equipment to make PVC capsules and Polylaminate capsule with multifunction option.

Specification of wine capsule machine:


• Capsules forming unit size :1350mm?1250mm?30mm
• Material in-feed unit size:2600mm?400mm?30mm
• Full machine size:5200mm?2200mm?1900mm
• Speed: 10-120pcs/min
• Machine weight: About 4000kg
• Machine power: 17.5kw
• Electric supply: Three-phases 380V, 50Hz

Capsules size:


• Top diameter: φ28mm~φ34mm
• Bottom diameter: φ30mm~φ36mm
• Height: 30mm~70mm
• Taper: 1.5°~5°
