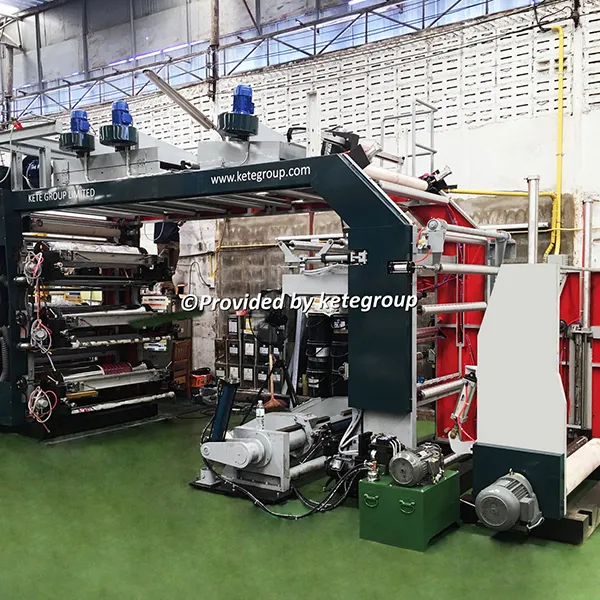

Flexo Printing Machine BP Series

Flexo Printing Machine BP Series

Flexo Printing Machine BP Series is used in high quality packing material surface picture printing. The Flexo printing machine is suitable for roller to roller printing materials such as Non-woven fabrics, Polyethylene, Polypropylene, Paper and other kind plastic film etc. The whole machine uses PLC Control system and these printing machines use Infrared heating system.

Features of Flexo Printing Machine BP Series:


  • Unwinding use auto tension control, use 5kg magnetic power brake.
  • Rewinding use auto tension control, use 10kg magnetic power brake.
  • Unwinding have EPC System and auto tension control
  • Ceramic Anilox Roller 800LPI 4 PCS, 360LPI 2 PCS, 440 LPI 2 PCS
  • Use Taiwan brand blowing fan.
  • Main motor use Taiwan brand, with Panasonic inverter. Use Taiwan brand auto counting system
  • Most electrical part use Taiwan brand or Korea brand, bearing use Japan brand
  • Roller all use Oxidation treatment, Static balance and dynamic balance treatment
  • Use closed type doctor blade system
  • Ink recycle system
  • Use Infrared heating system
  • optional video Inspection system
  • optional one set UV drying system


Main Technical Specification:


 Printing Material  Plastic film/Paper
 Printing Colors  8 colors
 Printing Width  1000mm
 Printing Length  1000mm
 Mechanical Speed  120m/min
 Printing Speed  80-100m/min
 Anilox Cylinder  200LPI~800LPI
 Master Motor Power  5.5kw
 Master Frequency Inverter  5.5kw
 Rewinding Motor Power  1.5kw
 Unwinding Tension  5kgs Magnetic Power Brake
 Rewinding Tension  10kgs Magnetic Power Brake
 Ink Mix Motor  0.75kw
 Printing plate lifting system  Pneumatic Type
 Electrical Heating  30kw
 Blower of Heater  1.5kw
 Blower of cold  1.5kw
 Net Weight  8500kg
 Total Powder  52kw
 Machine Size  5.2 x 3.0 x 3.3M(LWH)
