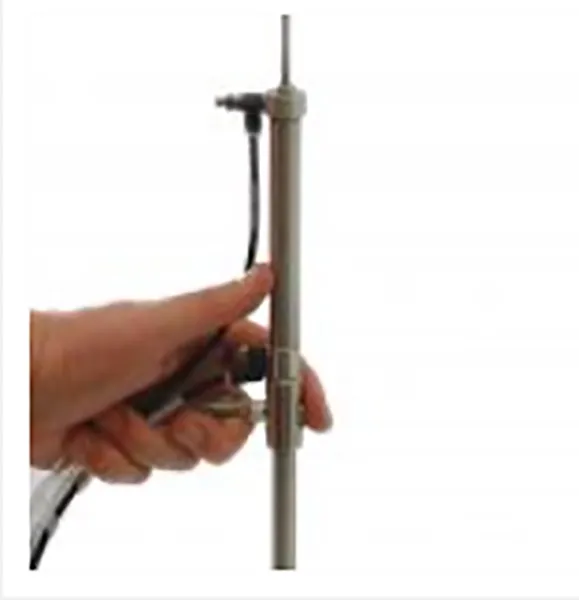

Earlier we spoke of “conventional” guns as those instruments which allowed product to be “picked’ by vacuum and dosed by a puff of low pressure air. However, there are instances where a product cannot be dosed strictly by air pressure or where the required volume of delivered product is very close to the available volume of the receiving vessel. Sometimes in such cases we can effectively fill product by mechanically sweeping or plunging the dose from the gun chamber mechanically by the action of an integral pneumatic cylinder. The guns themselves incorporate pairs of flow control valves to allow speed regulation of the “extend” and “retract” strokes of the cylinder. The “extend” stroke moves the chamber plunger to the very end of the chamber. The retract stroke is variable and is limited by the stroke adjustment screw at the top end of the cylinder.
