Klippenstein Corporation

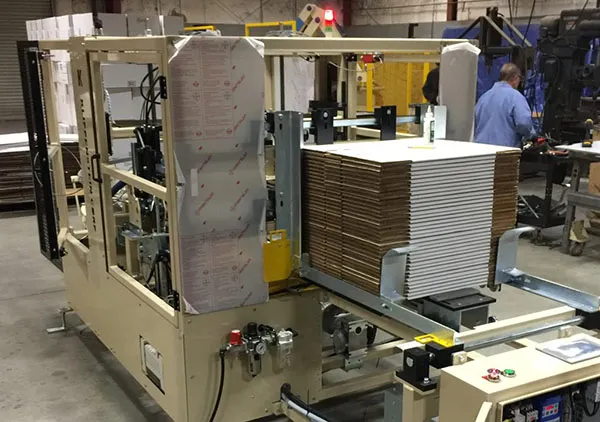

KE300HM or KE300TH-Case Erecting

Specifications

• Up to 20 Cases per minute
• Vertical Gravity Hopper with up to 24″ capacity
• Crank Adjustable Height and Width

Standard Features:

• Hot Melt or Tape Head Seal
• Full Safety Shield with Safety Switches
• 80 PSI Air Pressure with 1/2″ Diameter air Line
• 240Volt / 3 Phase / 60 Hertz (480V available)
• Legend Plate circuit Identification
• PLC (Programmable Logic Control)
• Touch Screen Controls
• Powder Coating & Zinc Plating on all wear surfaces.
• Air Operated Side Minor Flap Tuckers
• Pneumatic KD Transfer
• Opposing Vacuum Pick Case Erecting

Options

• Training & Setup (Travel Expenses additional)
• Stainless Steel Construction with Nema 4 Electrical Panel
• Casters with Locking Pads
• 480Volt Main Power (Hot Melt)
• Spare Parts Kit
