FASLINE+ FULLY AUTOMATIC HIGH SPEED LAMINATING / MOUNTING MACHINE

FASLINE+

The Lamina FASLINE+ is a fully automatic high speed sheet-to-sheet laminating/mounting machine. The machine is equipped with a high capacity rear edge top feeder allowing loading of pallets directly in to the unit to shorten stops due to reloading.

Bottom sheets are fed in to the machine by using a servo controlled non-stop belt feeder. The feeder is equipped with a heavy duty vacuum system to assure reliable feeding of various substrates.

Set-ups are quick and easily done because of the compact construction and easy operation. Lamina FASLINE+ is performing a high quality registration accuracy combined with an high output and non-stop production.

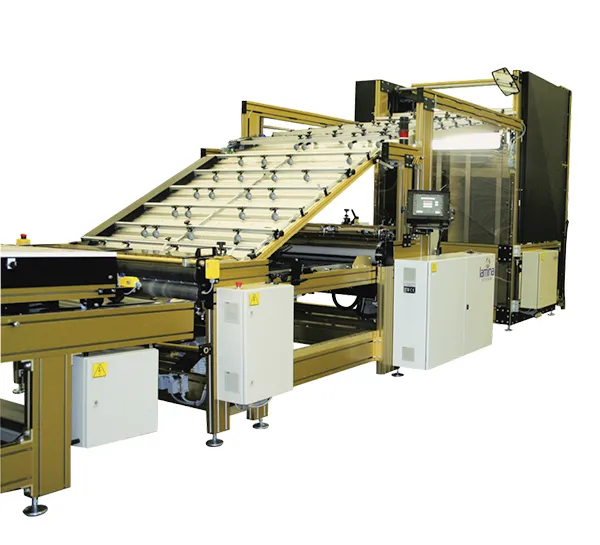

Lamina fully automatic laminating machine type FASLINE+

A Lamina Model FASLINE+ full sheet laminator - For sheet-to-sheet laminating of paper and cardboard-to-cardboard, solid and corrugated. The machine features a modular construction which combines a rigid framework with modern anodized aluminium profiles resulting in a heavy-duty, yet attractive unit that will give many years of dependable service. Set up and changeover are accomplished quickly and easily from the operator side without the use of tools. A combination of mechanical and photocell controls results in consistent registration accuracy of less than +/- 0,5 mm when proper materials and conditions exist.
