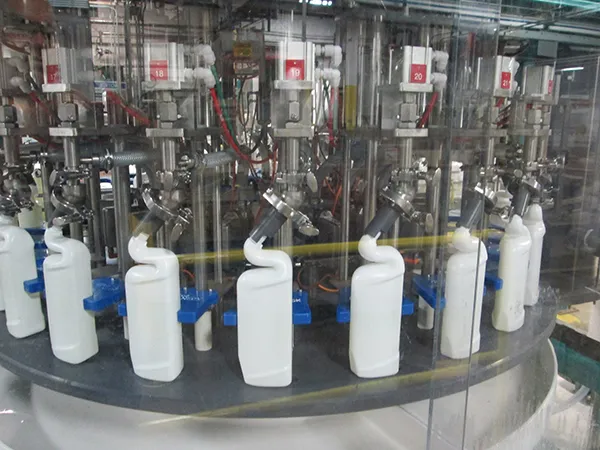

ROTARY MAG-FLOW FILLER

ROTARY MAG-FLOW FILLER

HOW WE DO IT

Laub\Hunt Mag-Flow Filling uses an Electromagnetic flow meter to sense the flow rate of the liquid

ADVANTAGES

• Accuracy Better than traditional piston or net-weigh fillers.
• Wide Product Range From water thin, to foamy to very viscous, water, cleaners, detergents, paints, shampoo, oils, juices, mayonnaise and peanut butters.
• Unlimited Volumes of fill from ounces to 5 gallons.
• Sanitary Meters with 3A flanges and Teflon product contact can be incorporated. CIP flush-out takes minutes, not hours required on piston fillers.
• Filling Speeds from 20 per minute on 5 gallons, to 100 per minute on one gallon, to 400 per minute on one quart --- depending on nozzle size and number of filling stations.
• User-friendly Operation with a built-in processor that detects changes in product viscosity, allowing the operator to set or adjust fill volume, fill speed on all stations, or individually, on the fly from the operator control panel.
• Reliability is designed and manufactured into this system by a company who has a proven track record for engineering quality and long lasting filling systems since 1950.

SOME HIGHLIGHTS

There are three types of meters:

Paddle-wheel which engages the product and rotates an encoder to send pulse signals;

Thermal which engages the product and monitors differential temperatures between standing and moving product

Electromagnetic flow meter which does not engage the product but measures the volume flow rate of electrically conductive fluids
