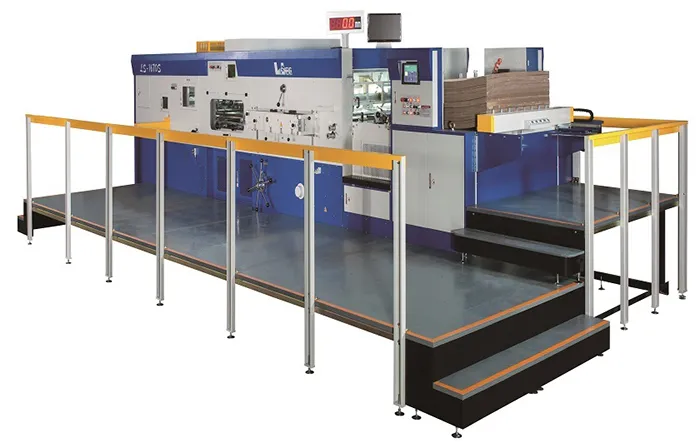

Automatic Corrugated Flat Bed Die Cutting Machines LS-1670 & 1670S

Feeder

• The feeder with the suction pump makes curved paper smooth. By top-load and bottom-feed, feeding structure feeds paper successively and operates easily.

• High friction feeding wheels prevent damage to the printed paper.

• The hydraulic powered feeding table will make feeding corrugated board easy, with no more heavy lifting for the operator. (opt.)

Positioning Mechanism

• This improved in-feed system will provide very tight register tolerance. It is able to handle die cutting on not only corrugated board but also on printed board without a register problem.

• Specially designed roller system easily processes various thicknesses of paper and corrugated board.

• Special design side guide which is suitable for various thicknesses of paper and corrugated board; accurate and easy to adjust.

Die Cutting Station

• The easy setup system and center-line die register system will cut down the make-ready time dramatically.

• Safe die cutting frame design is easily installed and dismantled. Rotation dies frame design allows easy replacement of dies.

• Bottom mold plate can unload and reserve the cutting mold for next time use.

Stripping Mechanism

• Coordinates with the cutting station, the structure with no frame can be adjusted fast and accurately.

• Top unit can be disengaged when not in use.

Paper Collection Station

• Non-stop delivery allows changing of pallets without interrupting the running job, saving time.

• Paper counter with tape inserter for easy counting and effortless packing.

• High efficiency conveyor system allows longer machine running time and maximum production.
