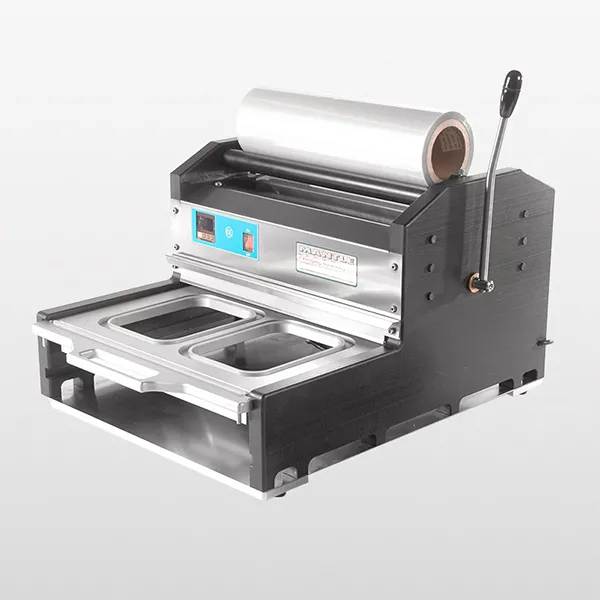

SR Manual Tray Sealing Machines with optional Profile Cut

SR Manual Tray Sealing Machines with optional Profile Cut

SR Manual Tray Sealing Machines with optional Profile Cut

Mantle Packaging are the UK distributors for the Rotopack range of tray sealing machines, from table top manually operated machines to semi and fully automatic systems.

The SR range of manual tray sealing machines comprises of the SR230 and the SR430.  Both models feature magnetic film clamping, so the film is automatically dispensed over the tray to be sealed. They are also available with profile cut, to trim the film to the shape of the tray.

The largest of these tray sealing machines is the SR430 model, which accepts film up to a maximum width of 400mm and would normally take two trays to be sealed in the one cycle. The machine features electronic digital temperature control, Teflon coated sealing plate, single arm operation with spring return and sliding mould with magnetic film clamp.

Both models within the SR range of tray sealing machines will seal all the usual lidding films and accept trays up to a maximum of 120mm deep.

General applications

SR type tray sealing machine installations are found in supermarkets, butchers and grocers shops producing ready meals, sandwiches, fresh and cooked meats, fish, vegetables and cheese.

Product Features

  • Digital temperature control
  • Magnetic film clamping
  • Teflon coated sealing plate
  • Sliding mould

Technical Specification for SR230

  • Electrics:- 240Vac : 400 watts
  • Max Tray size:- 190 x 200mm
  • Weight:- 25kg
  • Max film width:- 200mm
  • Machine Dimensions:- 320 x 500 x 460mm

Technical Specification for SR430

  • Electrics:- 240Vac : 800 watts
  • Max Tray size:- 370 x 250mm
  • Weight:- 35kg
  • Max film width:- 400mm
  • Machine Dimensions:- 520 x 600 x 500m
