Our laser markers adopt imported semiconductor modules, high-speed optical scanners and Q-switches to provide speedy scanning and high precision marking. These laser marking machines achieve a break-through in the laser marking field with advantages such as low energy consumption, high electrical-optical efficiency, stable laser output, high reliability, small footprint and outstanding marking effect, and are geared to provide reliable 24-hour continuous operations.

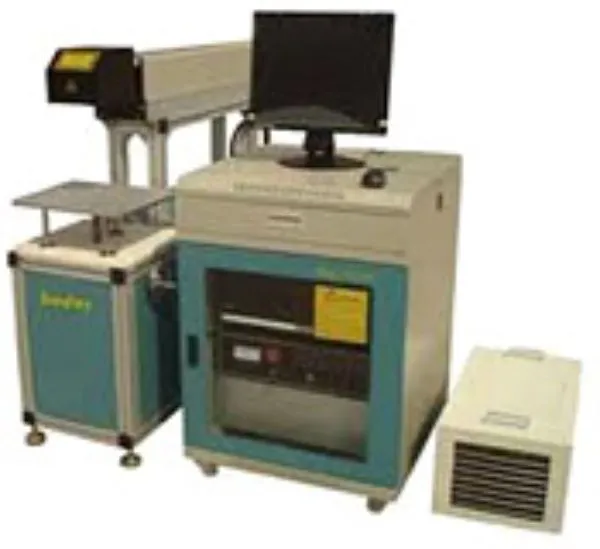

Diode Pump Laser Marker
Model
BML75D
Laser Power
75W
Repeatability
≤50kHz
Laser Wavelength
1064nm
Marking Range
0~300mm*300mm
Marking Speed
10000mm/s (300 Characters/s, Character high 1mm)
Engraving Depth
≤0.5mm
Min-Laser Beam
0.015mm
Smallest Character Engraving
0.15mm
Repeatability Accuracy
±0.005mm
m³ Light Quality
m³≤3
Direct Laser
LD Red Point:
Power
220V(±10%)/50Hz/15A
Unit Power
2.5kW
Graphic Format Supported
bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
Working Condition: Temperature
10°C-40°C
Net Weight
240kg
Packing Size
1400*1300*1220mm
