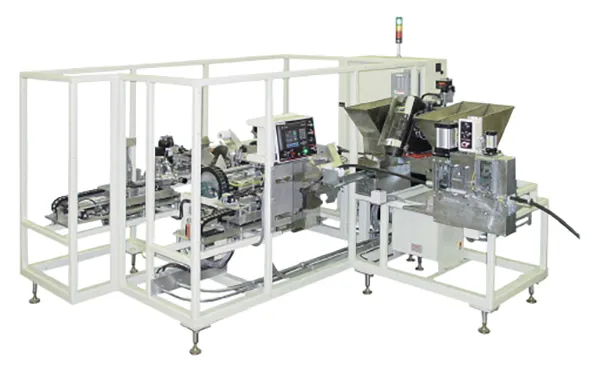

Automated Hose Coiler with Automatic Coil Tying

Model 3000 auto winder/coiler will automatically wind and tie consistent coils of hose or tubing. The two stage design allows for coil tying while another coil is being wound. Electric controls provide a high degree of consistency in operation and performance.

Features

• PLC with operator interface
• Easy electronic machine adjustments
• Simple mechanical machine adjustments
• Automatic disc or card placement
• Levelwind guiding for smooth winding
• Automatically ties coil after winding
• Automatically ejects coil after tying
• PLC controlled with operator interface panel
• Automated disc or card placement on coil face
• Automated measuring and cut to length with high degree of accuracy
• Controlled level wind and lay pattern for consistent coil winding
• Electronic tension control for consistent coil winding.
• Easy electronic machine adjustments for various coil

Specifications

• Electrical 240 VAC, 20 AMP 3 phase
• Pneumatic 80 psi
• Wired to National Electrical Code
• Horizontal coil diameter adjustable within a specified range
• Outside coil diameter adjustable within a specified range
• Coil lay width adjustable within a specified range
• Selectable menus for coil criteria
• Three tie placements to secure the coil
• Optional mounted fitting crimper
• Optional mounted fitting bins
• Rates up to 120/hour for 50ft coils (rates will vary depending on coil footage & size)
