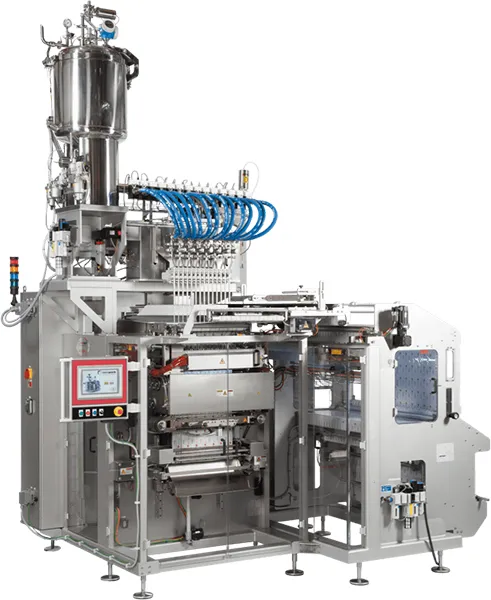

ML Series

ML Series

The vertical multiline solution as a result of the continuous design evolution and innovation of our packaging lines

The ML-Series is offered in two different models, the ML1000 and ML1200. Both have between 4 and 14 lanes available. The ML Series is especially suited for a multitude of products, granules, powders, and liquids. It is widely used in pharmachuetical, food, as well as the home and personal care sectors. Additionally, we offer automatic downstream equipment, such as conveyors, pick and place robots, as well as cartooning facilities. The machines have the most recent motion technology with integrated PLC functions, which sequences 7 brushless motors.

Main standard features

• One brushless motor for the main film drive system and vertical cutting knives
• Two brushless motors for unwinder
• Two brushless motors for the vertical seal bars
• One brushless motor for horizontal cutting knives
• One brushless motor for horizontal seal bars
• Mono block tubular steel frame
• Integrated electric cabinet
• Micro switch protected polycarbonate guardings
• 18.5” color touch screen
• Free access to the entire machine
• PLC controlled temperatures in each seal bar
• PLC controlled auto lubrication
• Splice table in unwinder for quick reel change
• Auger cleaning management system
• Automatic reel edge aligner in unwinder
• TPM features
• CIP facilities
• Compliance with the primary manufacturing standards
• Laser coders and scorers (optional)
• ATEX compliance (optional)
• Film sterilization system (optional)
• Laminar flow (optional)
