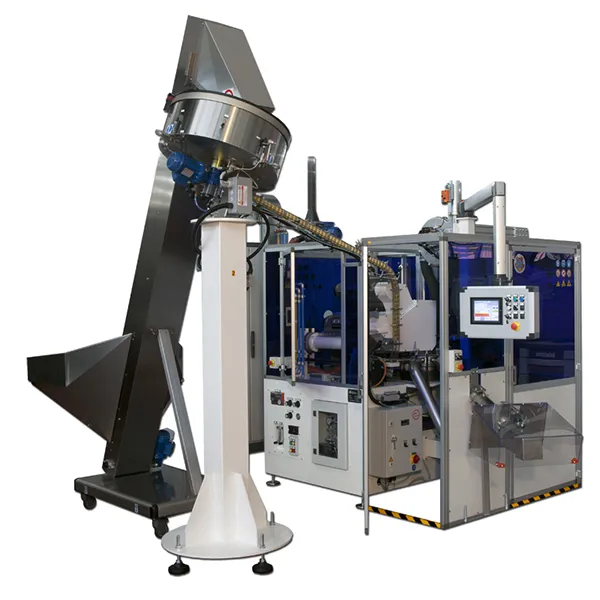

MO 3012

STANDARD TECHNICAL CHARACTERISTICS

12-station rotating turret with indexing movement;

control of all machine functions and accessories installed by a PLC with digital Bus Field system;

“no container-no printing” device with electropneumatic control to lift the printing head from the mandrels when a container does not come into printing position, so as to avoid printing on the mandrels;

fine adjustment of the pressure of the printing roller on the container to be decorated;

fine regulation of the inclination of the printing head for alignment to the surface of conical containers;

lacquering unit;

automatic loading and unloading devices;

UV drying with electronic control.

OPTIONAL DEVICES

flame or electronic pre-treatment;

dust cleaner and static electricity remover;

device for lacquer automatic feeding with control of temperature and viscosity;

remote technical assistance;

Technical data

max mechanical speed: 200 pieces/minute;

min and max container diameter: 15 – 60 mm as flexible tube configuration; 50 – 40 mm as closure and syringe configuration;

min and max container height: 50 – 150 mm as flexible tube configuration; 30 – 120 mm as closure and syringe configuration;

number of mandrels: 12;

number of printing sectors: 1 or 2.
