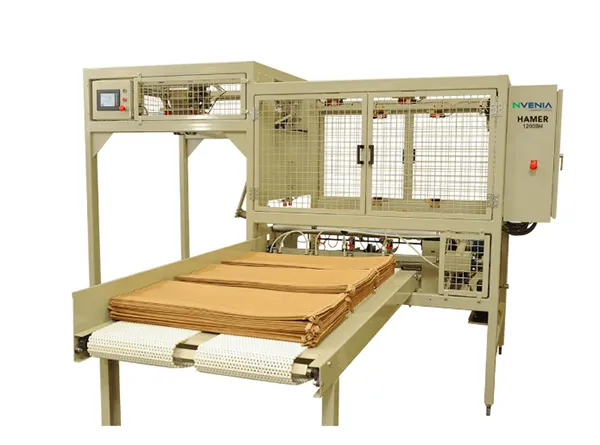

Hamer Brand Model 1200 BH Open Mouth Bagging Machine

Hamer Brand Model 1200 BH Open Mouth Bagging Machine

Our Hamer Model 1200 BH Bag Hanger provides consistent and reliable bag hanging for a wide variety of pre-made open-mouth paper, woven polypropylene  and polyethylene bags. The Model 1200 BH, when integrated with a bagging scale – automatically picks an empty bag from the stack, individually indexes each bag and then positions the bag on the filler spout. With a focus on electric servo and VFD actuation, the 1200 BH single bag indexing is a significant improvement over traditional bag hangers that pick a bag off a stack of bags.

Features

Standard

• Processes a variety of flat or gusseted bags, including multi-wall paper, laminated woven polypropylene and pinch bags
• Heavy-duty industrial construction, powder-coated frame for long life in demanding environments
• Modular design to fit any plant – right hand/left hand configuration
• Wire mesh interlocked safety doors
• Single bag indexing for reliable bag placing
• Servo controlled bag hang arms
• Heavy-duty clamshell bag clamp
• Mechanical adjustments for fast bag size change
• Allen Bradley PLC and Drives with easy to use, color touch screen operator interface
• Up to 20 bag per minute speed (product/bag dependent).
• Large 250 bag magazine (bag dependent)
• NEMA 12, UL Listed control panel

Options

• In-feed bag stack magazines
• Upright filled bag conveyors
• Bag clamp sizes
• Spouts and chutes to match application
• FastChange™ Dual Spout sliding interface that allows for quick spout change-over
• Foot Switch for manual operation
• Stainless contact points for corrosive environments
• NEMA 4X stainless steel control enclosures
• Power configurations
• Net weight or gross weigh scale
• Heat sealers or sew sealers
• Robotic bag palletizer
• Complete system design

Bag Types

• Pillow
• Gusseted
• Satchel (Grocery) bottom bags
• Pinch Bottom Open Mouth (PBOM) bags (with optional Handling System)
• Paper multiwall/Kraft bags
• Paper multiwall with poly/foil/poly woven liner bags
• Laminated poly woven bags
• Polyethylene – PE (4 mil minimum) bags
• Polypropylene bags
• Poly Woven Laminate bags
• BoPP/BOM bags

Bag Sizes

• Bag Width – 13” to 24”
• Inner Bag Width – 11.5″ to 24″
• Bag Length – 17” to 40”
• PBOM Bag Length – 20″ to 40″
• Maximum gusset size – 6”
