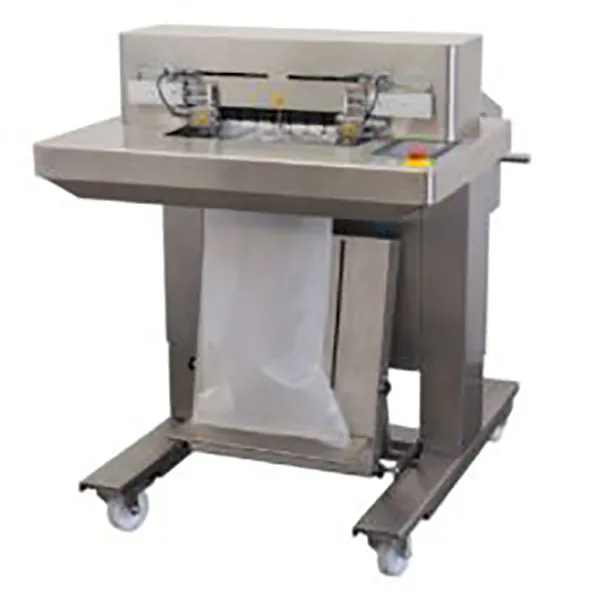

Rollbag® R3200 HS Med Automatic Bagger

Rollbag® R3200 HS Med Automatic Bagger

Automatic Pouching System for Medical Products

The Rollbag R3200 HS Med is a validatable pouching system for automatic packaging. The Rollbag R3200 HS Med automatic bagger is designed for cleanroom use and can package products at speeds of up to 40 bags per minute using Tyvek® or medical-grade paper rollstock tubing. The Rollbag R3200 HS Med automates the process of labeling, filling, and sealing medical products that are packaged in Tyvek pouches with a chevron seal and need to be sterilized as well as metallized polyester foil pouches.

Operating Benefits

• Uses tubing in a simple to operate, low maintenance design that provides lower material costs by forming pouches inline as they are filled and sealed
• 7” color touchscreen with user-friendly interface and clear prompts
• PLC with job storage, batch counters, packaging statistics, and login-in levels
• Constant heat 5/16″ (8mm) wide chevron bottom seal and 5/16” (8mm) wide straight impulse top seal
• Particle filter protects pouch interior and contents from airborne particulate matter
• Compact design takes up a minimal footprint in the packaging area
• Standard operating height of 34”

Sealing Benefits

• Validation of time, temperature, and pressure
• Controls provide calibrations fo temperature and pressure
• Pressure and temperature sensors trigger alarm and stop operation when out of preset band

Maintenance Benefits

• Off the shelf modular components for easy replacement
• Remote networking capability for improved troubleshooting
• Self-diagnostics ensure quick problem solving
• Quick service access to all pneumatic and electrical components
• Stainless steel frame for cleaning and hygiene

Set-Up Benefits

• Utilizes Tyvek rollstock tubing for quick bag size changes and easy set-up
• Adjustable height load shelf to support the bag during packaging
• Interface ports to integrate counters, scales, and robotics

Safety Benefits

• Safety light curtains for added operator safety during manual loading
• Low power consumption design (1500 Watts)
• CE compliant design for improved safety and troubleshooting
