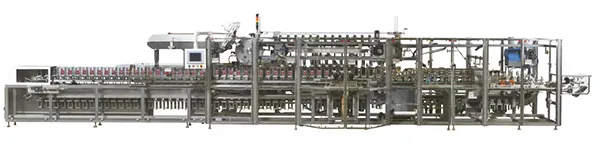

Horizontal Cartoners
Horizontal Cartoners
A horizontal cartoning machine designed for speed and accuracy for a wide variety of products.
Horizontal cartoning machines from PMI KYOTO package a wide array of products with speed and accuracy. This machine can even use our robotic technology to make packaging all the more precise. Available in both continuous or intermittent motion, our machines accurately and gently load your product at high-speeds with articulating in-feed buckets or by hand when slower speeds are required. For products that are frozen or susceptible to condensation, PMI KYOTO even offers washdown specifications to reduce the risk of rust and keep your machine looking pristine.
Benefits:
Heavy-duty, fully-welded solid steel main frame
Ethernet Connectivity module
Stainless steel drive shafts and protect guides
Stainless steel washdown construction (when applicable)
Central lubrication and auto lug chain lube
Full-height Lexan guard doors with interlocked stainless-steel frame
Category-3 Safety (lockable guard doors available)
Servo-driven rotary carton feeder with pre-break
Extended carton magazine, powered with low-level indicator
Articulating product bucket with integral pusher head which meets the carton at the loading station
No-carton, no-fill and no-product, no carton control
Spindle adjustments with center-lining for quick and easy changeover
Open flap detection and rejection
Cycle stop mode – flaps in the process of being glued finish prior to the machine stopping
Nordson hot melt glue system
Compliant with OSHA, ANSI, NFPA, ISO, LOTO, and UL
Packaging Types:
- Long goods, such as pasta
- Candy and granola bars
- Pouches and sachets
Markets/Applications:
- Long Goods (Pasta)
- Pouches
- Snack Bars
- Personal Care
- Stick packs, such as drink mixes
- Frozen food (ice cream, TV dinners)
