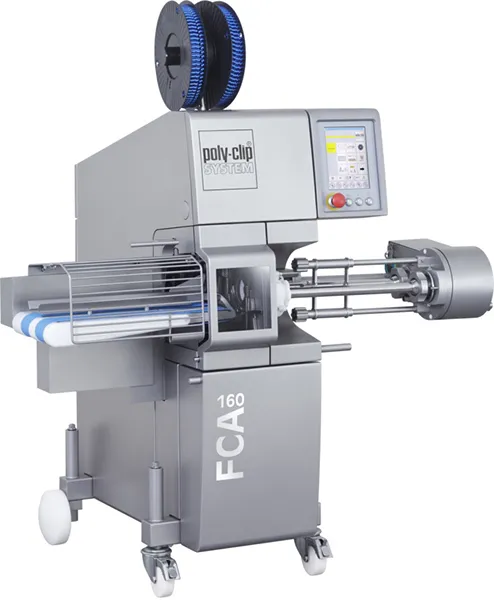

Automatic Double Clipper FCA 160

Automatic Double Clipper FCA 160

Top and PCS Exclusive Features

The star indicates features that you will only find at Poly-clip System.

• No one else has it: Automatic adjustment of clip pressure and displacer
• No one else has it: Automatic monitoring of clip, die and punch (RFID)
• No one else has it: Automatic central lubrication
• No one else has it: Automatic adjustment of filler and clipper
• No one else has it: Double clip monitoring
• No one else has it: Intestinal break monitoring

Why clip with FCA 160?

The FCA 160 offers unrivalled versatility combined with highest automation. It closes collagen casings up to 90 mm, fibrous casings up to 120 mm and plastic casings up to 160 mm (depending on the material thickness).

Advantages

• Highest productivity through automatic, self-monitoring processes
• Size of the voiding separator and setting of the clip pressure under servo control, can be saved as product parameters
• Incorrect settings are avoided by detection of the clip size, the punch and die
• R-ID Clip with high holding force, even up to bacteria-proof clip closure with plastic casings
• Auto-Stop System, clip sensor monitoring end of clip supply on reel; easy removal of remaining clips
• Uniform pleating and clean sausage tails due to the linear vertical voiding separator
• Highly dynamic, energy-efficient servo drive, infinitely adjustable speed
• Simple machine operation with SAFETY TOUCH – shockproof, 10” large and easy to clean
• Highest productivity; all product parameters can be recalled from the SAFETY TOUCH recipe management
• All recipes can be duplicated, saved and restored with the SAFETY TOUCH
• Operator-friendly with individually assignable manual functions, e.g. inching mode
• Simple, ergonomic handling for reloading of casing, without swing-out of the clip head
• Quick-change system for clip spacing without tools and for spreading with just a few handgrips
• Safety casing brake with hand guard; maintaining safety distance to separator when adjusted, operation without casing brake is blocked
• Operating instructions on SAFETY TOUCH. Functions and parameters are explained
• Additional safety by two-handed triggering of first clip
• Electronic hand-wheel for adjustments and setting parameters
• Adjustable conveyor belt speed for products true to the calibre
• Air-free slack filling of moulded products by overspreading, total spreading up to 130 mm
• Low noise level
• USB port for data import and export
