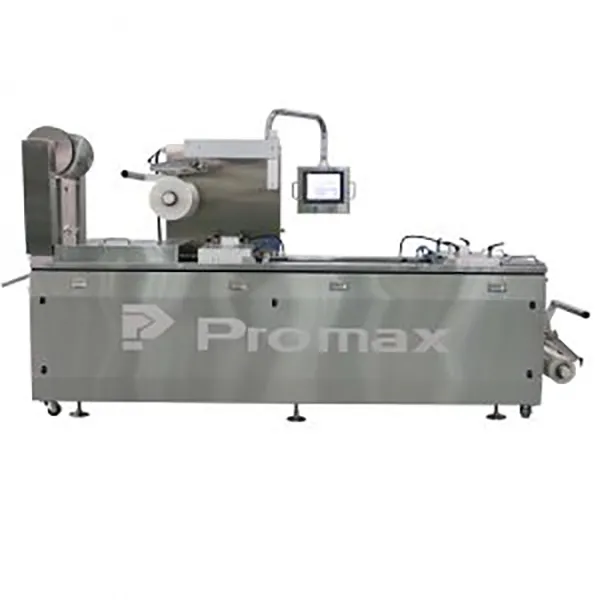

RS-455 THERMOFORMING PACKAGING MACHINE

RS-455 THERMOFORMING PACKAGING MACHINE

Standard Features:

• Stainless steel frame
• Stainless steel loading area
• Hinged dies for fast die change
• All stainless steel chain with Delrin chain guides
• PLC / HMI control system with large 10″ screen
• Quick compressed air forming
• Servo drive film transport chain
• Mechanical die lifting stations with air rams
• Busch RA063 vacuum pump
• Digital vacuum monitoring for fast troubleshooting and calibration for medical packaging
• Vacuum calibration ports for audits and medical packaging

DESCRIPTION

Promarksvac’c model RS-455 thermoforming packaging machine offers an indexing range from 320mm to 540mm and web widths up to 520mm. It can process both flexible and semi-rigid fill with thickness up to 14mil and can provide forming depths up to 120mm. Most of our standard features are options on competitive machines.

The RS-455 can accommodate a wide range of products from liquids and powders to marinated and whole muscle product as well as non-food products. With a wide range of available option the RS-455 can be configured for fully validate able operation for packaging medical and pharmaceutical products.
