TUBE FILLING SYSTEMS

TUBE FILLING SYSTEMS

Our innovative designs are capable of filling water-thin to highly viscous products. The ProSys advanced engineering approach creates unique solutions featuring servo drives and leading edge technologies.

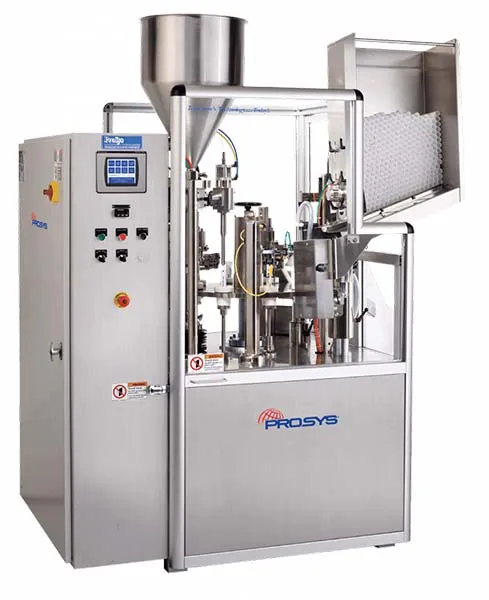

RT60 TUBE FILLERS – TO 70 PER MINUTE

Medium Speed automated filling and closing of squeeze tubes. Tube filling machines include a tube bulk bin, load ramp, orient, fill station and closure stations for plastic, laminate or aluminum tubes.

The RT60 with speeds to 70 tubes per minute has a compact 8 station dial and will fill a variety of sizes and styles of tubes with the option to fill plastic and metal tubes on one system.

FEATURES:

• Fully Automatic Tube Filling & Closing
• Eight Station Indexing Dial
• Metal, Plastic or Laminate Tubes
• Combination Metal & Plastic Model Available for Fast & EZ Changeovers
• Hot Air Sealing Technology
• Custom Profile Seal & Trim Available
• Metal Crimp/Double Fold or Saddle Fold
• Code Station & Top Trim
• Servo Driven Fill Station (RT60), Recipe Saving & Recall
• Tube Size Range 3/8” to 2 3/8” Diameter
• Unit Dose Filling
• Service and On-Line Support via Ethernet/Modem
• Vertical Bottom-Up Filling
• Swirl Filling & Custom Fill Profiles
• Optional Sanitary Fill Station
• Clean Room Installations
• Optional Explosion Proof Controls (Class 1 Division 1 & 2, ATEX 0 & 1)
• Pharmaceuticals, Cosmetics, Sealants & Adhesives, Grease & Food Products
