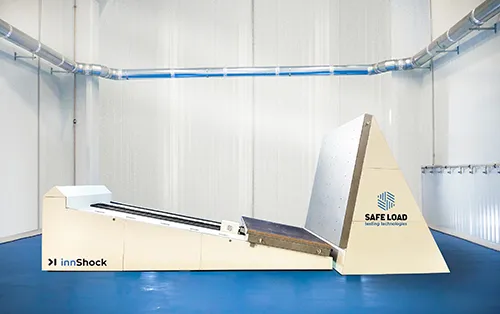

Inclined Impact Testers – innShock

The inclined Impact tester evaluates the ability of loads to withstand horizontal impacts or crushing forces thanks to gravity force. With this solution, it is possible to perform the ASTM D4169 and ISTA test procedures.

There are several international transport standards and regulations that include the inclined impact test as part of their protocols, such as ISTA and ASTM.

INCLINED IMPACT TESTERS FEATURES

• Impact velocity up to 2.5 m/s.
• Testing load up to 2.000 kg.
• Test platform different sizes.
• Smooth displacement.
• Hydraulic dumpers
• 10⁰ inclined plane.
• Touch and Intuitive controller.

Optional:

• innVision SET: High-speed camera and software to measure the unit load deformation, generating a report.
• Hazards
• Speed sensor

IMPACT TESTS SUPPORTED

• ASTM D4169 Standard practice for performance testing of shipping containers and systems.
• ISTA Procedures 1A, B, C, E, G, H; 2A, B, C; 3B, E, K; 4 Series; 6-SAMSCLUB, 6-AMAZON.COM.
