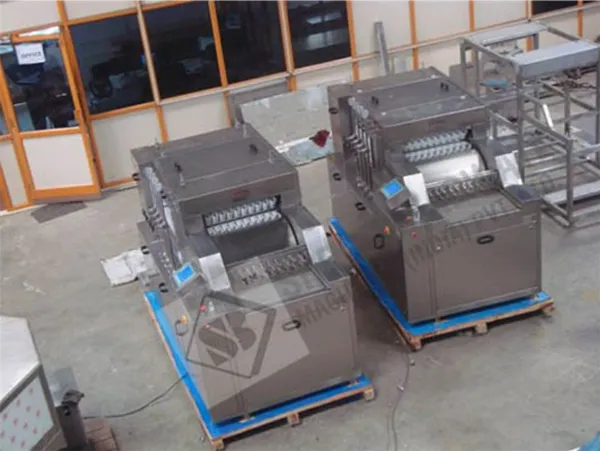

Automatic Linear Vial Washing Machine

Automatic Linear Vial Washing Machine is used for washing of Vials. There are two models available one is SBLVW-120 which gives an output speed of 60 to 120 Vials / Min. & the other one is model SBLVW-240 which gives an output speed of 80 to 240 Vials / Min. SBLVW-120 / 240 Automatic Linear Vial Washing Machine is used for washing of Vials. There are two models available one is SBLVW-120 which gives aout put speed of 60 to 120 Vials/Min. & the other one is model SBLVW-240 which gives a output speed of 80 to 240 Vials/Min. Vials will be pushed from infeed tray and then move on wire woven conveyor belt, which align the vial in correct position, to enter in to the carrier pocket with help of oscillating guide rails. Oscillating arm deliver the vial inside pocket in mouth down position over spraying nozzles. Multijet sprayers fixed at the top cause the total external and internal surface to be washed. To avoid any possible cross contamination between two different waters. Each washing station is provided with an independent circuit. Carrier pocket is moving with indexing motion. When the baskets have completed their motion the needles are lifted. They penetrate the vials, spraying jets of water or compressed air then return down. The baskets movement then advances by one station. Each station of vials passes through the washing cycles selected.
