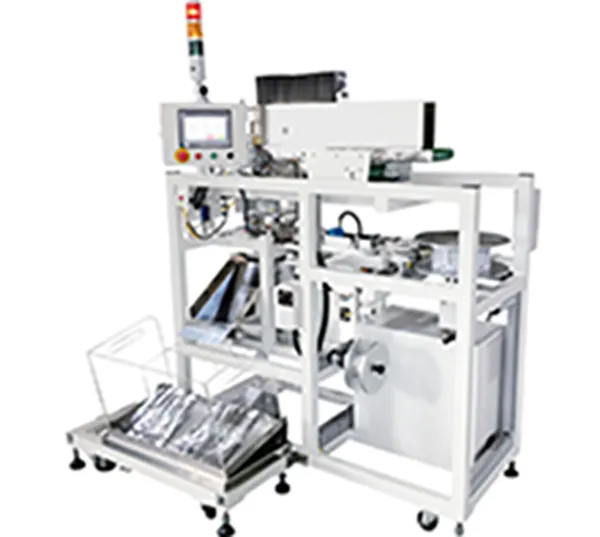

AstaPoint Systems Automatic Tin Tie Applicator

Features:

• Man-Machine Interface with easy touch screen mode selection, pre-set tin tie quantity and trouble shooting information center.
• PLC control system with auto bag feed and tin tie application control.
• Tin Tie Spool: A reel unit to load Tin Ties. Maximum diameter of spool is 300 mm (11.8″ ). The eye mark pitch are 120 mm ( 4 3/4″ ), 140 mm ( 5 1/2″ ) and 178 mm ( 7″ ).
• Spool to collect scrap for easy clean up
• Bag Collector with pre-set quantities which triggers carton to move to next position.
• Bag Collector: This unit can be moved left and right to collect and count the bags based on pre-set quantity.

Technical Information:

• Production speed: 18 bags per minute per operator
• Maximum Tin Tie Size: 180 mm L ( 7″ )
• Maximum Bag Size: 76 mm (3″) to 178 mm (7″)
• Overall dimensions: 741 W x 1432 D x 1732 H mm ( 29.7″ W x 56.3″ D x 68.1″ H ).
• Power requirement: 110v or 220v, 50 or 60 Hz.
• Total weight: 992 lbs. ( 450 Kg.)
• Minimum: 10 mm (3/8″) from top of the bag
• Maximum: 60mm (2 3/8″)
• Maintenance Metric Tool: One set of metric tool is provided with the machine.
