Vertical fill & sealing machine

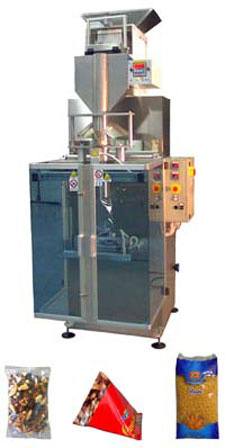

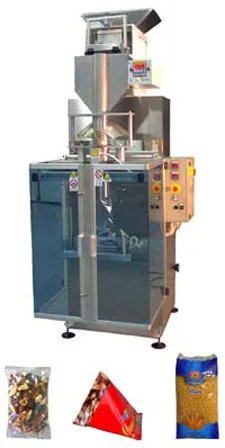

Vertical packaging machine mod. S3



Vertical electropneumatic form fill and seal 3 sides sealing packaging machine, able to create pillow-bag style or gusseted bottom style bags. By means of the suitable dosification system, this packaging machine is able to pack several kinds of products into bags weighing by 0,1 to 10 kg.





Main features:



  • production speed: up to 90 bags/minute;
  • production speed up to 75 bags/minute; with square bottom:
  • bag dims.: max. 310 x 550 mm flat bag;
  • reel diameter: max 700 mm;
  • reel width: max 740 mm (650 mm used);
  •  machine dims.: 1100 x 1800 x 1700 mm;
  • air consumption: 14 Nl/cycle at 6 - 8 atm;
  • electrical supply: 5 Kw - 380 V 50 Hz tri-phase + N + T;
  • weight: 1300 Kg.



The S-3 can be equipped on demand with further accessories for loading the product, for the operability in modified atmosphere, for creating square - bottomed bags - on demand with off - centre sealing, square - bottomed bags with vertical edges sealing, for applying clip for re-closing the bag, for printing or labeling the bag.
