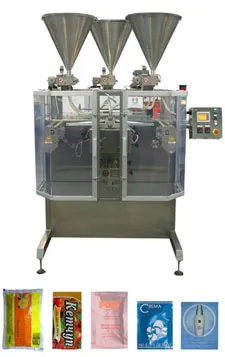

SMT 300 liquid version

Vertical packaging machines mod. SMT 300 liquid version

Automatic electronic continuous motion packaging machine able to produce four sides sealed sachets. The machine is constructed on a sturdy Aisi 304 stainless steel frame; the parts in contact with the product are made of the same material. All the movement of the machines is effected by means of three brushless engines.



Main Features:



  • Mechanical speed: up to 200 cycles/min. (up to 10 production lanes);
  • Bag dims. : Width max 300 mm; length max. 200 mm;
  • Reel diameter: max. 600 mm;
  • Product dosing: from 0,5 cc. up to 250 cc.;
  • Voltage :380/220 V 50/60 Hz. tri-phase + N;
  • Installed power : 4 Kw;
  • Electric absorption : 3 Kw;
  • Air consumption: 60 Nl/cycle at 6 Atm.;
  • Net weight: cc. 600 Kg;
  • Dimensions: 1765 x 1800 x 2300 (H) mm.
