The SQ-10 CO2 Laser Coding System

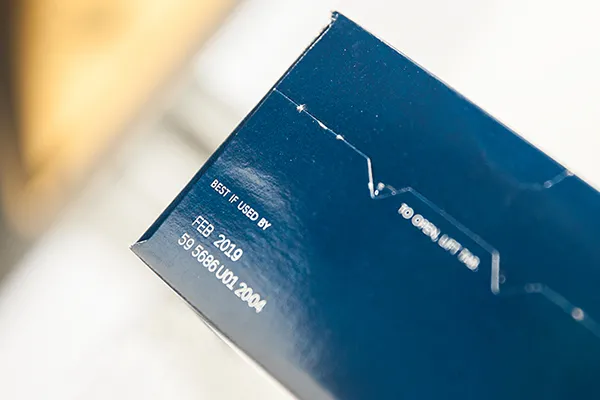

Squid Ink’s SQ-10 laser coding system is designed for high speed food and beverage, pharmaceutical, cosmetic, and other primary coding applications. Squid Ink CO2 lasers can permanently mark onto paper, cardboard, plastic, and more.

Application Versatility

• Permanent coding of text, time and date, bar codes,serial numbering and more
• Quick and easy installation for both stationary and moving products
• Easily fits into production environments where space is limited
• Laser head can be rotated 90° in less than 5 minutes

Reliable & Economical

• No ink/consumables for lower cost of ownership
• Clean and eco-friendly coding system
• Rugged cast aluminum controller body
• IP54 rating ensures maximum reliability and uptime in demanding applications
• Integrated key switch and interlock relay for increased safety on the production floor

High Quality Code Generation

• Scribing technology produces non-dot matrix, razor sharp marks on a variety of substrates
• Ability to mix different fonts and logos in a single message
• Discrete coding ability for anti-counterfeiting and traceability
• Ideal coding alternative where CIJ systems are not practical

Easy to Start, Simple to Run

• All-in-one design for fast installation and line changes
• Easy to use touchscreen software built right into controller
• Optional 10” touchscreen controller for remote system programming where space is limited
• Intuitive system includes focus finder and code area preview window on product during setup; enables initial laser marking setup within minutes
• Easily configurable in a variety of angles with optional mobile stand
• Optional fume extraction systems available that connect directly to SQ-Laser systems

BENEFITS OF THE SQ-10

• CO2 marking system
• 10W model
• Static or continuous marking modes
• No inks or solvents – environmentally friendly and cost-effective
• Marks on plastic, paper, cardboard, plastic, and more
