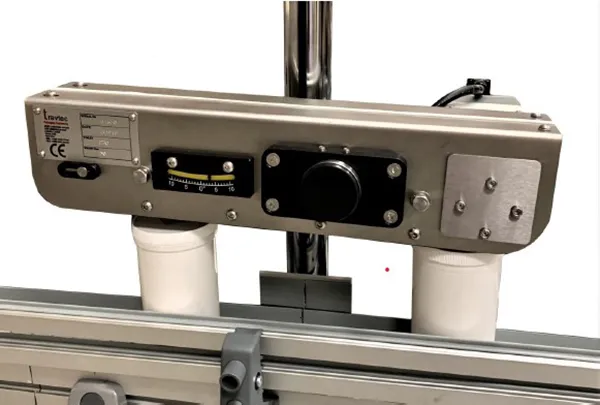

CAP PRESS

CAP PRESS

Automatic pressing of Snap-On caps for tubs, jars & cans

Caps can be manually, or machine placed whilst the container is travelling along a conveyor, replacing hand pressing of closures, eliminating wrist strain and Injury.Adjustment between container sizes takes only seconds with an integrated handwind and angular adjustment compensating for different container heights.The variable speed drive is easily synchronised with existing conveyors, and the belt drive ensures positive control and guidance, gently pressing the cap without shock force.The innovative design is easily attached to most conveyors within 1 hour

TECHNICAL SPECIFICATION:

• Construction: Stainless steel construction. Quick-change design. CE Certified
• Controls: Low voltage brushless variable speed DC Motor. IP66 Rated.
• Power Required: 220/240 v AC Single phase. 0.5 kW loading.
• Speed: Variable up to 30 mtrs per minute.
• Product Sizes: Width: 20 - 80mm; Height: 10 - 350mm.
• Dimensions: Length: 550mm; Width: 200mm; Height: 600mm.
