TRAVTEC TR-860

TRAVTEC TR-860

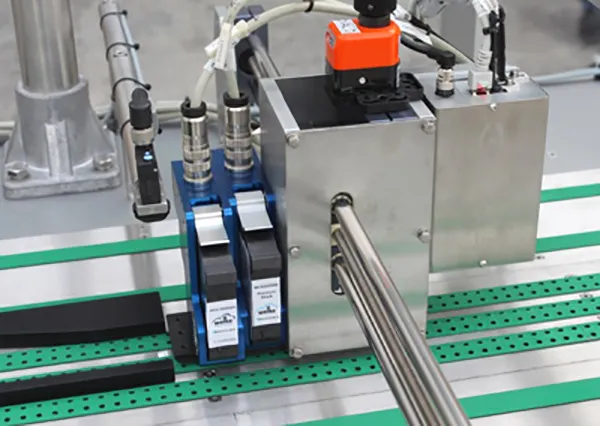

The TR-860 Versa-Feeder is designed to feed flat cartons, folded leaflets, single labels and paper sheets for coding with inkjet or laser, labelling, or print & apply. An OCR/OCV vision system positioned directly after the printhead, confirms & collects the coded data for traceability purposes. A fail to safety reject unit removes incorrectly, or unprinted cartons, and an optional Shingling Conveyor ensures a continual feed for maximum production efficiency.The machine is ideal as an off-line Serialisation System reducing complexity where cost are a major factor against on-line systems. It is designed to accept most types of high resolution printers and suitable vision systems

TECHNICAL SPECIFICATION:

• Construction: Stainless steel framework. Heavy duty drives, Quick-change design. CE Certified
• Controls: PLC controller. With HMI operator interface, intermittent & continuous feed. Batch counter
• Power required: 220/240 v AC Single phase. 1.5 kW loading
• Throughput: Up to120 products per minute depending on size
• Carton Sizes: Length: 75 - 400mm; Width: 35 - 350mm; Thickness: 0.1– 10mm
• Dimensions: Length: 2400mm; Width: 850mm; Height: 1460mm (with Guard)
