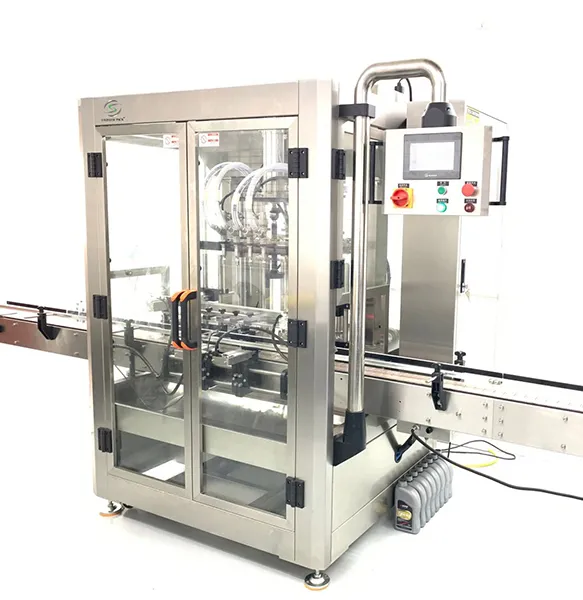

FILLING MACHINE

FILLING MACHINE

GMP Standard with Anti-Dust SpecificationFully Automatic / AutomaticElectrical Component:Mitsubishi PLCSimens Touch ScreenAirTac/ Camozzi CylinderCoreken InverterOmron RelayKeyence SensorMachine Specification:Nozzle: 4-12 NozzleFilling Range with Maximum Capacity: 100-1000ml Maximum200-2000ml Maximum300-3000ml Maximum500-5000ml Maximum(Programme Setting To Double Filling)Filling Accuracy : Light Liquids is 0.2% (High Viscous is around 0.4%)Output per minute: Base on cycle 2-6 per minute time numbers of nozzleFacilities:Bottle in/out counting (Daily Counting)Bottle Clamper (Always in right position)Dripping Tray (Avoided product drop to bottle & conveyor)Product Buffer Tank 150-250kgBuffer Tank Stirrer (Base on product need)Double Jacketted Buffer Tank (Hot Filling/ Cold Filling)Buffer Tank build in product high&low sensor (Auto product refill)Teflon Piston & Viton U SealProgramme:3-Step Fill (Avoided Foaming/Bubble Liquids)Double Fill (Maximum 1000ml can setting up to 2000ml)Swift Filling (For small size volume product like 20-60ml) (output can hit up to 50%)
