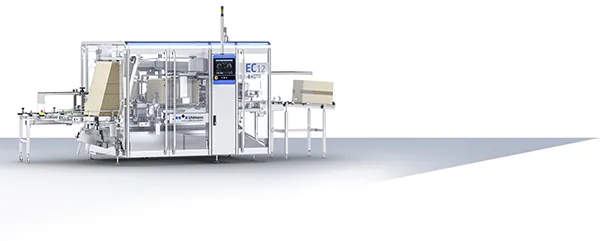

Case packer EC 12

Highly flexible end-of-line packer for cases ready for dispatch

The Case packer EC 12 packages cartons filled with solid or parenteral blisters, or bundles of cartons, in cases ready for dispatch. The steps cover erecting the case blanks, loading from the side, and two-sided closure of the case. Operation of this machine is extremely space-saving, and the erecting and turning station ensures optimum utilization of the case volume. In addition, the modular design allows flexible adaptation of the configuration to meet customer requirements. The ergonomic design not only gives the user optimum accessibility, but also facilitates servicing and cleaning. One example here is access to the case magazine from the operating side. Fast format changeovers and straightforward handling make the EC 12 very efficient. Operation via the central SmartControl operating system is intuitive and easily comprehended. The Case packer EC 12 can be seamlessly integrated into an Uhlmann line. In terms of performance and operation, it is the optimum solution downstream from an Uhlmann cartoner.

The integration of a Track & Trace solution into the EC 12 is also an option, e.g., for the embossing and printing of both sealed sides of the case. Code readers verify that the correct code has been applied to the tertiary packaging.
