Umbra Packaging s.r.l

UPF

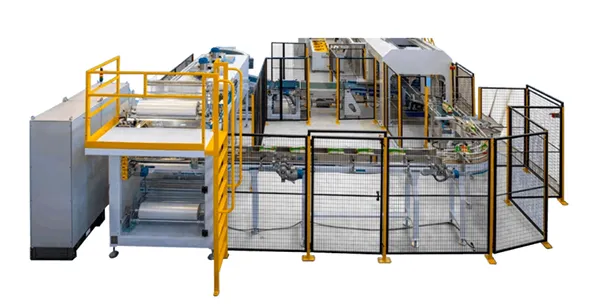

Automatic bundling machine with heat-shrink film, grouper, feeding belt and pusher.

Technical data

• The machine has a painted steel supporting frame and consists of: Motorised modular feeding belt, with variable speed by means of inverter and adjustable width guides
• Flap folding device
• Product check/stop for push go-ahead
• Plate for bundle formation
• Multi-row pneumatic pusher for bundle formation and product push over bar
• Product upper sealing unit with brushes, adjustable in height
• Motorised lower and upper film reel unwinding
• Electrical panel with PLC and control panel
• Pneumatic sealing bar for film cutting and heat sealing with Teflon-coated insert
• Usable film band: max. 900 mm
• Maximum product conveying height 380 mm
• Product sealing pneumatic presser over bar, adjustable in height
• Metal mesh tunnel conveyor belt with adjustable speed by inverter
• Heat-shrink tunnel with hood sized as follows: Le= 1500 x Wi= 900 x H=500mm
• Temperature inside the tunnel displayed and adjusted via a temperature controller
• Oversized package cooling device mounted at the tunnel exit
• Various possible combinations
• High flexibility
