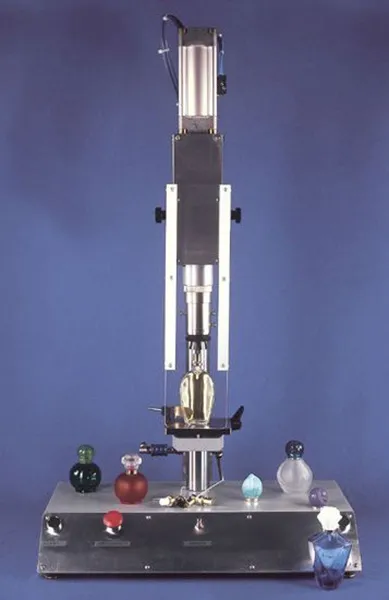

Coven AP93P

Coven AP93P

Pneumatic Crimping Machine (Semi-Automatic Action)

This machine is recommended for small and medium scale production.

The AP93P is simple to set up and operate and is supplied with a two finger start for safe use – simply place the bottle on the adjustable stand and press both start buttons at the same time to initiate the crimp action.

Excluding 1 inch size, all crimping heads can be mounted to crimp all pump sizes.

Technical Details

• Dimensions: 60x32x105 cm
• Net weight: 45 kg
• Working pressure: 6 bar/87 psi
• Air consumption: 24Nl/min
• Supplied accessories: 2 bottle location jigs, allen keys for adjustment and 1 crimping head (size on request)
• Optional accessories: additional crimping heads
• Standard crimping head diameter available: 11, 13, 15, 17, 18 and 20 mm
