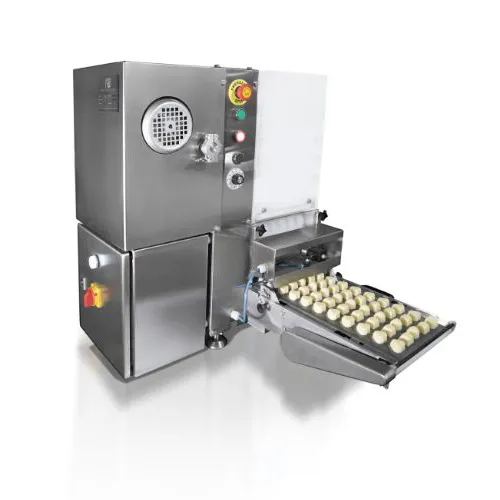

Automatic forming machine for fruit pastes

Automatic forming machine for fruit pastes

Using for fruit pastes, marzipan, soft krokant, fudge (fondant).

Design features:

— Fully automatic.

— Top table type model.

— Suitable for small capacity.

— Stainless steel, aluminum and special ultraplastic.

— An integrated conveyor system.

— Folding cantilever type transporter.

— Accurate speed control.


— Compact: it takes up to 0.8 square meters.

— Forming of different shapes of product with flat bottom — bar, round, square, star etc.

— Forming without cutting — without scrap and waste

— High speed forming on the tape.

— Minimum resetting time

— Quick and easy cleaning

— Quick change of the forming set

— Custom-made forming rotor

— All parts having contact with the product are made from food-grade structural plastic and stainless steel

Working width: 200 mm .

Forming roller diameter: 200 mm .

Drive power: 1 kW

Electricity: 230/400 V, 50Hz, 3 phase

Forming speed on belt: 1 — 10 m / min

Weight: 80 kgs.


Compressed air: 5 — 6 bar

Air consumption: appr. 2 litres / min
