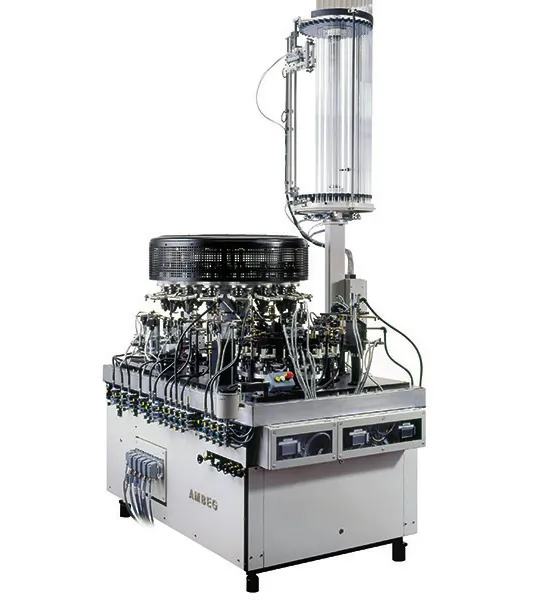

Syringe forming machine FS 16 with automatic tube feeder
Syringe forming machine FS 16 with automatic tube feeder
Vertical 16/12-heads indexing motion machine for the production of syringe barrels from glass tube
Technische Daten
Operating rangeWorking range of chucks: Ø 6 - 22 mmother working ranges on request
Length of finished syringe barrel:max. 115 mm total lengthhigher total length on request
For the production of tubular glass syringe barrels with all main types of tips, such as luer type or staked needle type
OutputUp to 2.400 pieces per hour depending on the machine configuration and the diameter of the glass
Dimensions and weight
|
Length:
|
1.900 mm
|
|
Width:
|
1.635 mm
|
|
Height with tube feeder:
|
3.550 mm
|
|
Weight:
|
1.800 kg
|
ConsumptionConsumption values for gas, air, oxygen and hydrogen depend on the glass tube and the type of gas used. Detailed information will be supplied on request.
FeaturesCapable of producing a complete syringe body of high precision including luer tip, finger grip and bypass.
Automatic tube feeder with magazine
OptionHigh-Speed Index Drive HSILaser thermal shock cuttingVersion for production of cartridges
