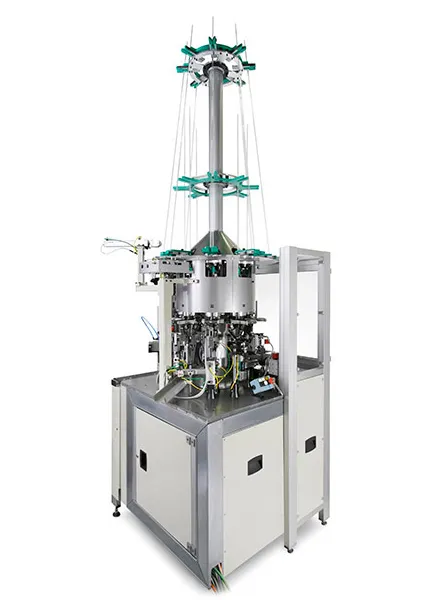

Tube cutting machine RS 8
Vertical 8-heads indexing motion machine with horizontal glazing unit for the production of tubular glass blanks
Technical Data
Operating rangeWorking range: Ø 6 - 22 mmalternative: Ø 18 - 35 mmalternative: Ø 25 - 42 mmother working ranges on request
Length of finished blank:
min.
30 mm
cylindrical length
max.
100 mm
total length
higher total length on request
For the production of tubular glass blanks with one or two glazed ends.
OutputUp to 3.600 pieces per hour depending on the diameter of the glass.
Dimensions and weight
Length:
1.400 mm
Width:
1.060 mm
Height with tube feeder:
3.600 mm
Weight:
900 kg
ConsumptionConsumption values for gas, air and oxygen depend on the glass tube and the type of gas used. Detailed information will be supplied on request.
Automatic tube feeder with magazineMagazine above the chucks with a total storage capacity of 8 glass tubes.Alternative: 1 tube feeder RZ with magazine
OptionTube feeder type RLG for feeding the glass tubes into the magazine of the machine directly from tubing bundle.
