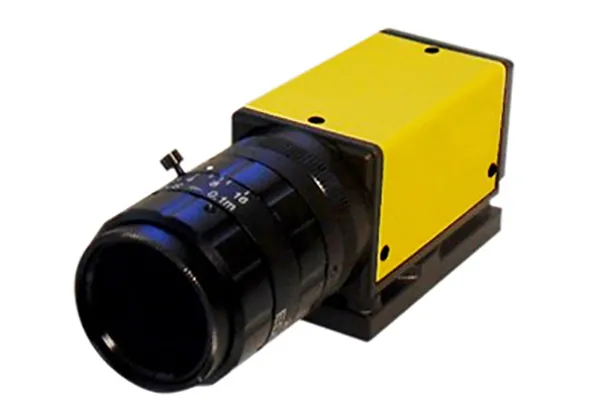

In-Sight Micro

In-Sight Micro is the smallest vision system series at 30mm x 30mm x 60mm. Featuring power over Ethernet (POE), these ultra-compact vision systems are the right option for integrating into small spaces. In-Sight Micro is available in a range of performance levels and tool sets to meet a diverse array of machine vision demands.

Features

• Insight Smallest Profile
• Single cable for power and Ethernet connects via the industrial M12 connector. An M8 connector provides high speed trigger and outputs.
• Die-cast zinc and steel case stands up to industrial environments.
• In-Sight Micro measures only 30mm x 30 mm x 60 mm.

Options

• Accepts standard CS or C-mount lens (spacer for C-mount lens included).
• Includes the powerful ExtractColor software tool to inspect color features of a part and the robust MatchColor software tool to recognize parts based on their color. Models:1100C, 1400C, 1403C
