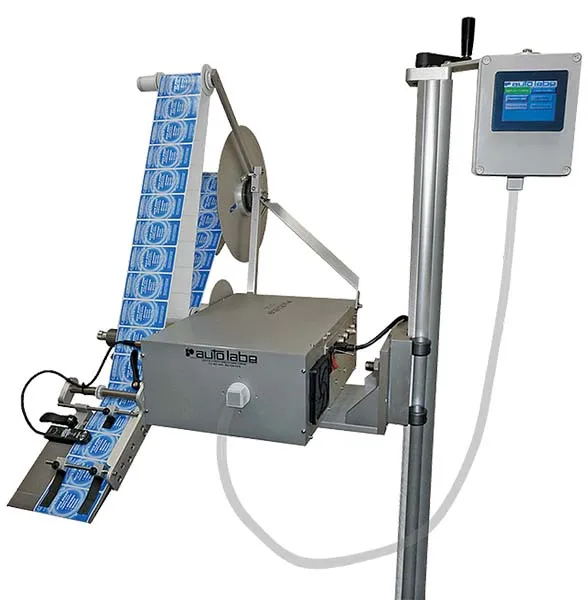

110S Automatic Labeler

110S Automatic Labeler

The Model 110S is designed for exceptional label placement accuracy and reliability in high-speed applications. The Model 110S is built with 24/7 operation in mind and can be deployed in the harshest environments. It can be used as a stand alone wipe on and is also the base of our tamp and tamp-blow label applicators. When integrated into product handling systems, the Model 110S is the premier label applicator featured in our 600S series labeling system. Options for the 110S include an encoder interface for varying line speeds, web monitoring systems, adjustable stands, wide label kits, and the ability to integrate hot stamp imprinters and table top thermal printers.

Specifications

• Dimensions: 34.5″ L x 18.4″ W x 28″ H
• Weight: 33lbs/15kg (approx.)
• Electric: 120 or 220 VAC 50/60 HZ/5 AMP
• Labels: Standard 6.5″ web width with 10″ O.D. roll and 3″ core. Additional label width options available
• Speed: 1800″/min

Features

• Stepper motor drive
• PLC control with SD card slot for easy upgrades
• Rates to 300ppm with +/- 1/32″ accuracy at stripper plate
• Simple label teach function
• 5.7″ HMI color touch screen with optional password
• Anti-static technology
• 60 programmable presets
• Heavy-duty stainless steel components & a clear anodized aluminum body
• Set maintenance and cleaning reminders
• Integrates with previous Auto Labe mounts and systems
• Multiple label drop settings
