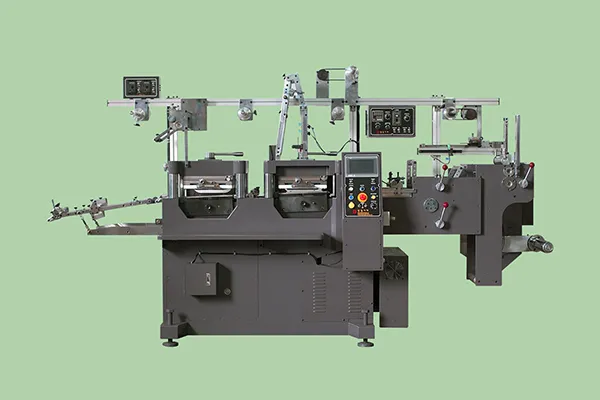

BSP 3231W 2016

BSP 3231W 2016

Characterstic.

1. Using Rexroth(made by Germany) servo system, more sophisticated, precise

2. Double Die-cutting station

3. Easy and precise repetitive work available by servo motor

4. Smooth interlocking with Printing machine (New Art Line)

5. OPTION: Laminating unit, Hot stamping unit, Hologram foil unit

6. Upper chase adjustable in every direction

7. PAPER TENSION CONTROL SYSTEM equipped

8. WASTE PAPER TENSION CONTROL SYSTEM equipped

9. Easy and convenient TOUCH PANEL CONTROL SYSTEM equipped

Specifications.

Cutting Dimensions: 310/320mm

Maximum Paper Width: 310mm

Machine Speed: 40~180Rpm

Electric Power: 3PHASES. 220V/380V

Main Motor: 2.2Kw/8EA

Net Weight: APPROX. 2,500 Kg

Machine Size: (L)1,820(W)1,170(H)1,580
