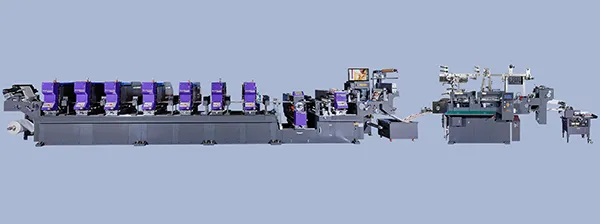

NEW ARTLINE 2016
NEW ARTLINE 2016
Categories
Characteristic
1. Using Rexroth (made by Germany) servo system, more sophisticated, precise and faster printable
2. INLINE SYSTEM: Unwinder + Printing Unit + Varnishing Unit + Magnetic die-cutting Unit + Reminder (Unit location adjustable by customer's request)
3. ULTRA-FINE CONTROL SYSTEM: More sophisticated print function available
4. 2 LINE 3 TOUCH ROLL SYSTEM: Free from ghost effect thanks to 3 built-in rolls
5. WEB GUIDE SYSTEM (EPC): Paper feed function stabilized by preventing
6. AUTO TENSION SYSTEM: Paper feed function reduced paper loss
7. DIGITAL REGISTERING SYSTEM: Setting time shortened without switching cylinder
8. AUTOMATIC POSITIONING SYSTEM: Both of paper loss and setting time reduced
9. VISION CONTROL SYSTEM: Fraction defective reduced thanks to real-time inspection
10. Working hours shorten thanks to Rewinder & Magnetic die-cutter
11. Servo motor mounted on the rewinder and Unwinder, Paper unwinding and rewinding precision.
12. Printed size diversified thanks to cylinder of Ø132(Max.printed size: 414.69mm)
13. Opposite angle of cylinder - Resin plate attached - adjustable within range of 5~6mm
14. Coordination of printing units available (Optional by customers' various needs)
15. AUTO POSITIONING SYSTEM APPLICATIONS: Using a vision system camera, development of the ability to adjust the print focus itself.
16. Print focusing almost no change, regardless of the speed change
Specifications
Chase Dimensions: 300/340mm (Full 414.59mm)
Maximum Paper Width: 310mm
Maximum Printing Feeding: 340mm
Electric Power: 3Phases. 220V/380V
Electric Power: 3Phases. 50/60Hz
Main Motor: 2Kw/color+2EA / 1.5Kw/color+2EA
UV Dryer: 4Kw/1Unit
Net Weight: Approx. 9,500 Kg
Machine Size: (L) 8,000(W)1,200(H)1,650
