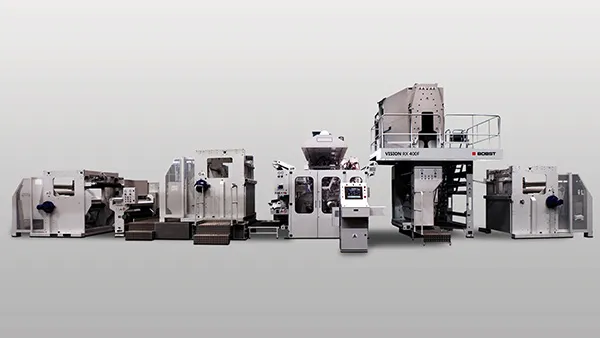

VISION RX 400F - Extrusion coater

VISION RX 400F - Extrusion coater

High performance and flexibility

The VISION RX 400F is a is a custom-built extrusion coating and laminating line that delivers outstanding performance in the production of multi-layer composite structures for a variety of flexible packaging applications. The compact design and user-friendly features enable fast job changeovers and optimum accessibility to all sections and functions. This results in higher machine uptime and faster time-to-market.

Superb quality

• Very precise control of web tension capable of handling a full range of flexible substrates
• Gentle processing and mixing of sensitive/delicate raw materials.

Versatile and upgradable

• Possibility to combine different processes in line
• primer coating
• lacquering
• flexo or gravure printing
• Up to 5-layer composite structures
• Speed up to 400 m/min. Web widths up to 1750 mm
• Upgradable to tandem configuration
• Common equipment with BOBST gravure and laminating line for parts interchangeability.

Full control of operations

• In-house technology for all processes
• Full control on reel change on both directions with possibility to set reel length, diameters and synchronized splicing
• Fully automatic bi-directional reel splice at machine production speed
• User-friendly HMI for managing a complex system of set-up up and controls
• Connectivity features to enable access to production data from remote devices.

FEATURES

Customizable layout

The machine construction design affords the flexibility required by the wide range of possible configurations.

Primer coating unit

The coating unit for applying the primer can be equipped with standard or enclosed chamber doctor blade depending on the required coating type and speed. Replacement of the doctor blade is very fast. The unit features an effective technical solution which avoids the formation of foam, especially during operation with a water-based primer.

Extrusion coating and laminating unit

The heart of the machine is the lamination group which is characterized by a three-roll system with indirect pressure. The rolls, due to very precise engineering, ensure a constant temperature across the entire web, thus avoiding any stress to the material being coated - and improving the adhesion properties of the coated material to the substrate. The point of lamination is fixed giving the best web handling. Component parts of the extrusion coating and laminating group, such as the chill roll and the pressure rolls are easily and quickly replaced and the whole group affords optimum accessibility for cleaning and maintenance.

Extrusion equipment

Manual or automatic die controlled by a thickness measurements system. The movements of the carriage afford a wide range regulation of the position of the die and optimum control of the extrusion parameters. All the electrical equipment and the thermoregulation cabinet are located on board to reduce floor space requirement and cabling from the machine to the extruders. All the thermoregulation zones are fitted with fully automatic heating/cooling control systems. The high performance extruders are fitted on the carriage in a sliding layout to compensate for heat expansion. Different layout configuration for extruder size, screen changer and die.

High efficiency dryer

The impingement dryer is highly efficient and functional, enabling perfect web handling and thorough cleaning of nozzles and rollers. As the efficiency of the drying and ventilation system is crucial and an important source of energy savings and reduction of CO2 emissions, the recirculation group has been sized to optimize power consumption, and the hood is insulated to prevent heat dispersion.

Shafted or shaftless winders

The production line can be equipped with fully automatic shafted or shaftless duplex winders. Both provide for bi-directional automatic splicing at maximum production speed. The accurate tension control system has been designed for handling the full range of processable materials. The efficient technical solutions that optimize the recovery of electrical power enable an important reduction in the level of energy consumption.

Complete control of your production line

The extrusion coating & laminating line is fully controlled by the Cosmoline PRO, an integrated operator-machine interface system. The Cosmoline PRO includes the control and storage of all the machine parameters in recipes, as well as management of the extruders, installed equipment, alarms and data loggers.

A wealth of available options

Different additional equipment can be added to the production line, such as dosing units, suction of resins device, thickness control system, chiller.

Solutions for reel handling

Several solutions are available for reel loading and unloading. They range from fully automatic lifting trolleys to hoist systems, depending on specific requirements.
