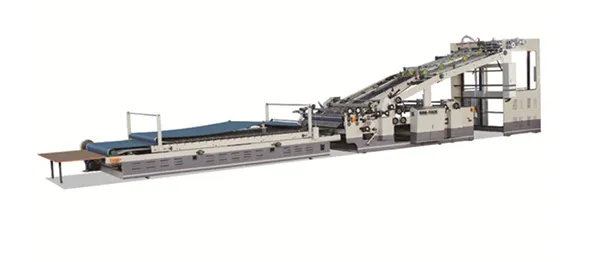

ZH-BHT Automatic Flute Laminator Machine
※Major feature:
Our company manufacture professionally ZH-BHT series of Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy.
Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance.
Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance
※Technological parameter:
|
Model
|
ZH-BHT1300
|
ZH-BHT1450
|
ZH-BHT1650
|
|
Max. paper size
|
1300×1100mm
|
1450×1100mm
|
1600×1200
|
|
Min. paper size
|
400× 400
|
400× 400
|
400×400
|
|
Mini. weight of bottom paper
|
300gsm
|
300gsm
|
300gsm
|
|
Max. weight of bottom paper
|
800gsm
|
800gsm
|
800gsm
|
|
Max. thickness of paper
|
10mm
|
10mm
|
10mm
|
|
Mini. weight of face paper
|
180gsm
|
180gsm
|
250gsm
|
|
Max. weight of face paper
|
800gsm
|
800gsm
|
800gsm
|
|
Precision of paperboard and cardboard
|
±1.2mm
|
±1.2mm
|
±1.2mm
|
|
Precision of paperboard and corrugated board
|
±1.5mm
|
±1.5mm
|
±1.5mm
|
|
Machine speed
|
100PCS/MIN
|
100 PCS/MIN
|
70 PCS/MIN
|
|
Total power
|
14HP
|
14HP
|
14HP
|
|
Total length
|
12.5M
|
12.5M
|
14.5M
|
