CEHUMA Thermoform Packaging Machines

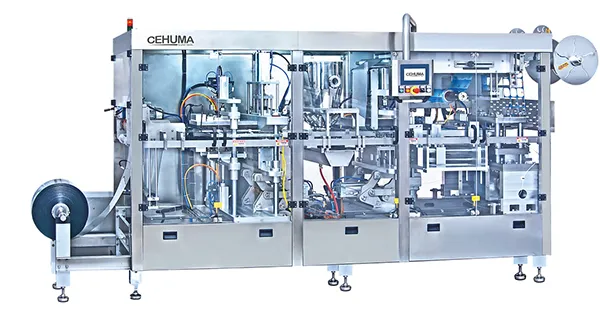

Automatic Forming Filling Sealing Machines (FFS)

YZ thermoformers are mainly for automatic filling and sealing applications and very often used for filling and sealing of water, juices, ketchup, mayo, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, yogurt ... The machine is a cam driven machine which means the plastic film forward move is done by a mechanical cam system leading a very high output preformance up 35 cycles per minute.

Technical Specifications

• Capacity (Cyc/min) | 15-35
• Index (mm) | 70-200
• Web Width (mm) | 150-500
• Bottom Web Thickness (μm) | 550-1200
• Bottom Web Material | PVC/PET/PS/PP
• Top Web Material | AL+PET
• Machine Length (mm) | 5.500-11.000
• Energy Consumption (kW) | 8-25
• Electric Supply | 3 x 380V. 50 Hz.
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16

Options

• Automatic dosing
• Water dosing
• Juice dosing
• Viscous fluids dosing
• IP65 level of protection
• UV lights sterilization
• Hepa filter
• CIP (Clean In Place) Integration
• Labeling systems

Advantages

• Entire stainless steel structure
• Safety standards according to "EC" regulations
• Large touch screen
• Wide range of cup design possibilities
• Advanced punching technology
• Servo technology
• Programmable advance speed
• Multi-language selection
• Precise dosing
