CEHUMA Thermoform Packaging Machines

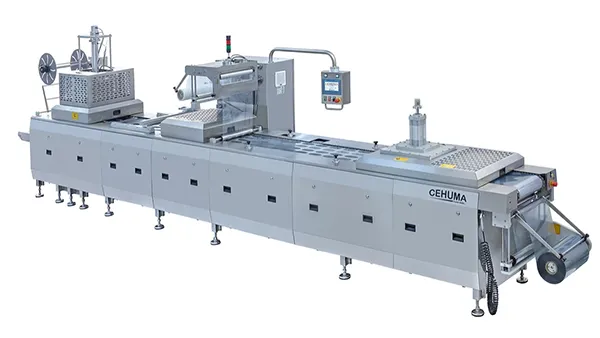

Automatic Vacuum

CM series thermoformers are basically for automatic vacuum and MAP applications and very often used in dairy, meat, poultry, seafood, dried fruits and vegetables, bakery, medical and so on... The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm.

Technical Specifications

• Capacity (Cyc/min) | 5-12
• Web Width (mm) | 180-600
• Bottom Web Material | Flexible/Rigid
• Top Web Material | Pa+Pe/AL/Tyvek
• Machine length (mm) | 3500-9500
• Forming Depth (mm) | 60-150
• Energy Consumption (kW) | 8-38
• Electric Suppy (3x380V. 50 Hz)
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16

Advantages

• Corrosion-resistant gripper chain
• Entire stainless steel structure
• Modular construction
• Programmable advance speed
• Multi-language selection
• Safety standards according to "EC" regulations
• Large touch screen

Options

• Flexible / Rigid Film
• Vacuum / MAP Application
• Dosing and Product Loading Systems
• Coding and Printing Systems
• Metal Dedectors / Check Weighers
• IP65 Level of Protection
• Printed Film Registration Top Film
