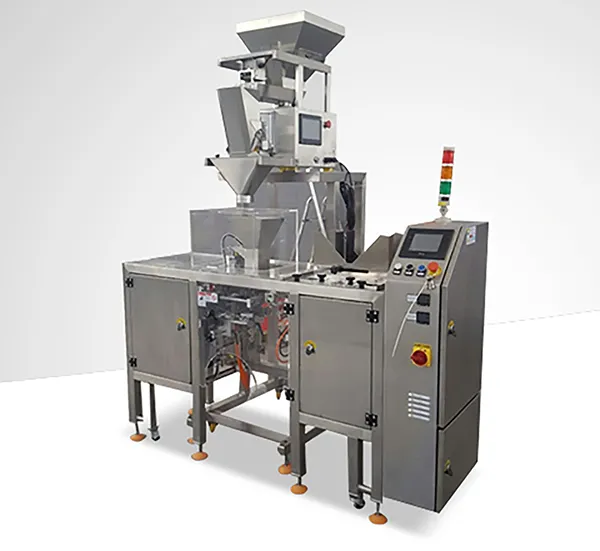

Doy-Pack packaging machines

Features

The Doy Pack packaging machine is a latest generation horizontal equipment. Ideal for granulated, dusty or irregularly shaped products, the Doy Pack system uses stand-up bags with zippers, very useful in case the contents of the package are not consumed immediately after unsealed.

Technical features

• Doypack single weighing station
• Material: AISI 304
• Control panel: Delta, 5.7 "Touch Screen
• Mitsubishi Logic Control Programmer (PLC)
• Omron temperature control system
• Airtac pneumatic guide
• "Piab" bag removal system
• Maximum weight 1 kg
• Bag width: 90mm ~ 250mm
• Bags length: 120mm ~ 280mm
• Maximum speed: 18 bags / min
• Power supply: 220/50/60 Hz single phase
• Required pressure: 7.0 CFM @ 80 PSI
• DM2 scale for one end (available for 2 ends)
• Weighing range: 10-3000g
• The weighing accuracy: 1-5g (depending on the material)
• Drum volume: 5000ml
• Vibrant floor
• Control panel: 7 "Touch Screen
• Control system: MCU (Modular)
• The number of programs that can be saved: 50
• Power supply: AC220V ± 10% 50Hz (60Hz)
• 4 Stepper motors
• Structure AISI 30 Platform (AISI 304SS) for the weighing support
