DM PACKAGING GROUP SRL

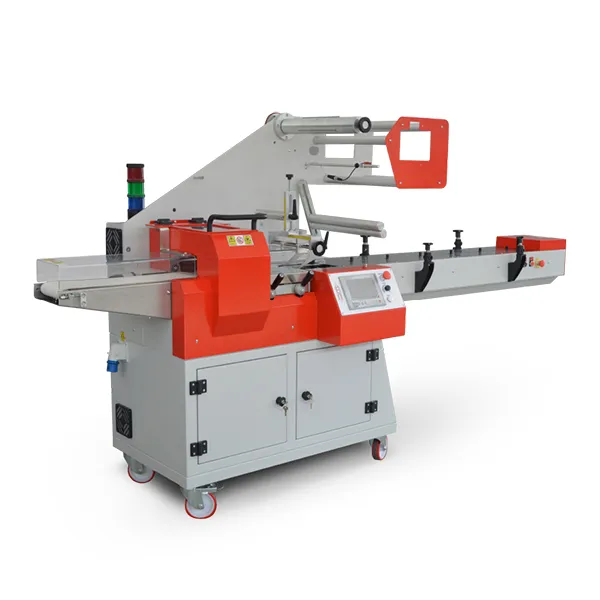

Minitronic 400

Minitronic 400 is a small, versatile, technologically advanced packaging machine, but with a low cost, aimed at companies looking for a high quality product to optimize packaging processes.

Features

• 220 V power supply
• Weight 300 Kg
• Sealing bars diam. 120 mm
• Nr ° 2 Pairs of rollers, the first with the film pulling function, the second with the sealing function (diam 120 mm)
• Safety guard, with stop systems in case of opening.
• Motorized product outfeed belt.
• Emergency buttons with immediate interruption of the work cycle.
• Courtesy buttons at the end of the line
• Photocell for print centering included.
• Maximum film reel 420 mm
• Expansion reel-holder shaft
• Sliding surfaces in AISI 304 steel compliant with CE regulations
• Dimensions 2950 x 630 x H1700
• Maximum speed 100 pcs / min

Technology

• 3 axes controlled by servo motors and Schneider drives.
• Communication via CanBus
• Plc with integrated 7 ”color touch screen.
• Possibility to memorize product recipes
• Machine backup including parameters and recipe that can be exported and imported via USB key
• Print and product centering via touch screen.
• Easy diagnosis for problem solving.
• Possibility of connection to teamwiever for assistance via LAN cable and VNC
