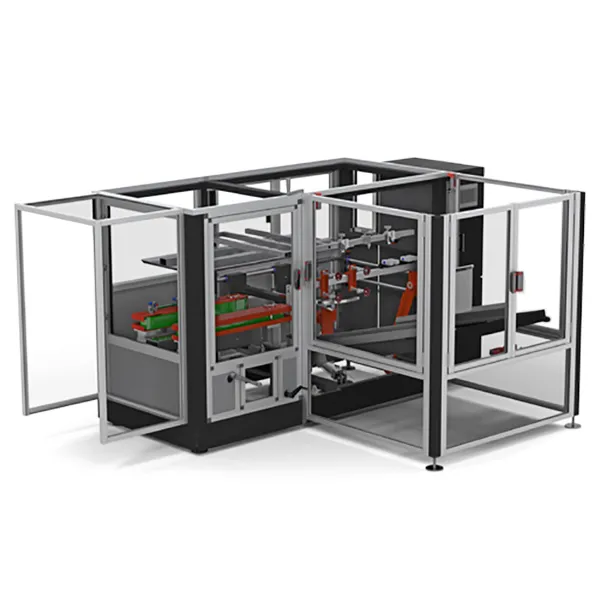

BEM200 Automatic case former

BEM200 Automatic case former

BEM200 Automatic case former

The basic structure consists of a magazine for folded cartons, a system to open them, close the lower flaps and seal the bottom. Then deliver the box assembled with the bottom closed and ready to introduce products vertically.The folded boxes located in the machine’s magazine are taken by a vacuum suction cup system that opens them and places them in the forming position.The boxes are transported though the machine for a quick sealed of the bottom flaps.

Technical features

Standard Machine

Variable production depending on carton format up to 10 boxes/min

Dimensional adjustment: Manual

Bottom flaps folding

Air Pressure: 6 bar.

PLC Control system

Touch screen LCD

Bottom flaps closing with adhesive tape

Tape end detector with alarm

Electric power 220V 50 Hz

Installed Power 0, 5 Kw

Pneumatic installation 6 bar.

Weight 400 kg.
